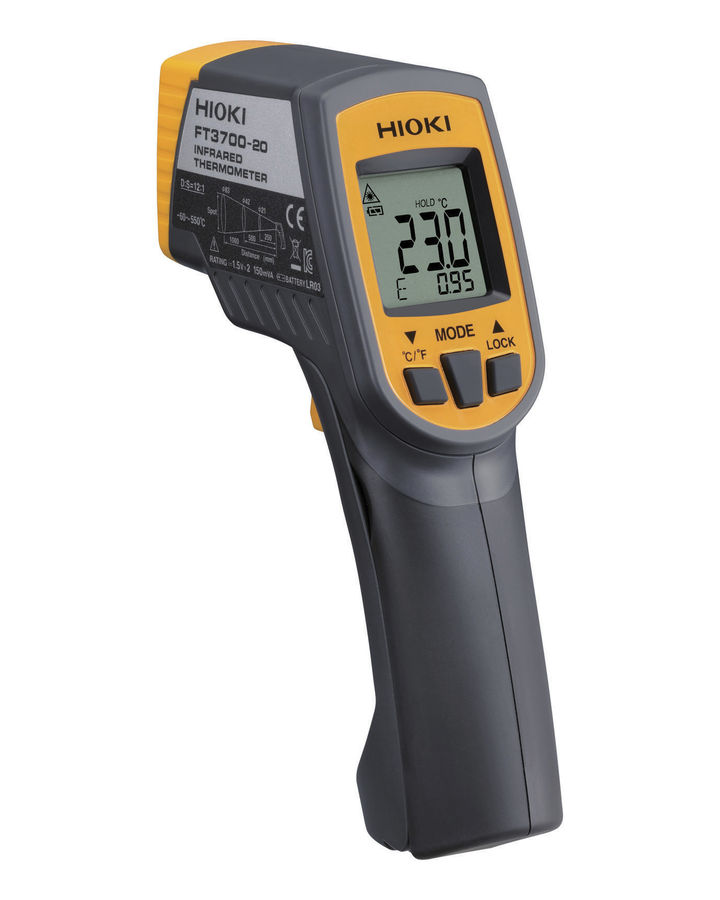

HIOKI FT3700-20 Infrared Thermometer
In Stock: 8 Unit
ManufacturerHIOKI(View more products from this manufacturer)
ModelFT3700-20
OriginChina
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
| Measurement range | -60.0°C to 550.0°C(Accuracy guaranteed from -35°C to 500°C.) | |
| Measurement accuracy |
| |
| Guaranteed accuracy temperature and humidity range | 23°C ±3°C, 80% RH or less (non-condensing) | |
| Temperature coefficient | Measurement accuracy × 0.1/°C | |
| Response time | 1 sec. (90% response) | |
| Diameter of measurement field of view | At 1 m distance, 83 mmDistance (D):diameter of field of view (S) = 12:1 | |
| Detection element | Thermopile | |
| Sighting | 2-point laser marker (Class II) | |
| Measurement wavelength | 8 to 14 mmEmissivity correction function: e = 0.10 to 1.00 (in 0.01 steps) | |
| Functionality | Measurement of maximum, minimum, difference between maximum and minimum, and average values; upper and lower limit alarm; continuous measurement mode; auto-power-off; backlight | |
| Operating temperature and humidity range | 0°C to 50°C, 80% RH or less (non-condensing) | |
| Storage temperature and humidity range | -10°C to 50°C, 80% RH or less (non-condensing)50°C to 60°C, 70% RH or less (non-condensing) | |
| Standard compliance | EMC: EN 61326 Laser: IEC 60825-1 (Class II laser) | |
| Power supply | AAA alkaline battery × 2 (continuous operation: approx. 140 hours) (With laser marker, backlight, and buzzer off) | |
| Dimensions and weight | 48 (W) × 172 (H) × 119 (D) mm, 256 g (including batteries) | |
| Accessories | Instruction manual, carrying case, AAA alkaline battery (LR03) × 2 | |
