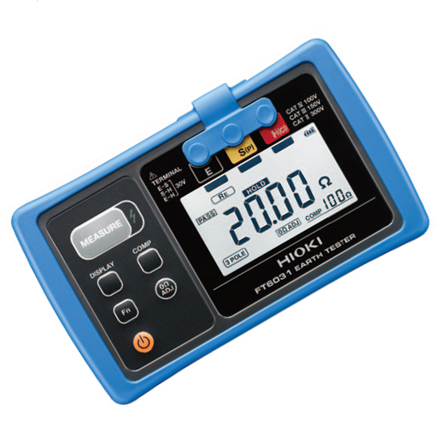

HIOKI FT6031-50 Earth tester (0 Ω〜2000 Ω)

Measurement system: Two-electrode method/three-electrode method (switchable)

Measurement range: 20 Ω (0 Ω〜20.00 Ω)/ 200 Ω (0 Ω〜200.0 Ω)/2000 Ω (0 Ω〜2000 Ω)

Accuracy: ±1.5% rdg ±8 dgt/ ±1.5% rdg ±4 dgt/ ±1.5% rdg ±4 dgt

Earth voltage: 0〜30.0 V rms

Accuracy: ±2.3% rdg ±8 dgt (50 Hz/60 Hz), ±1.3% rdg ±4 dgt (DC)

Allowable earth potential: 25.0 V rms (DC or sine wave)

Dustproof and waterproof: IP65/IP67 (EN60529)

Power supply: LR6 Alkaline battery ×4, Possible number of measurements: 500 times (measurement conditions: three-electrode method, measuring 10 Ω at 10-second intervals without Z3210 installed)

Functions: Live wire warning, zero-adjustment, continuous measurement mode, wireless communication (only when Z3210 is connected), and comparator

Dimensions and mass: 185 mm (7.28 in)W × 111 mm (4.37 in)H × 44 mm (1.73 in)D, 570 g (20.1 oz.) (including batteries and protector, excluding terminal covers and other accessories)

Accessories: Auxiliary Earthing Rod L9840 (2 piece set) ×1,

Measurement Cable L9841 (black 4 m) ×1,

Measurement Cable L9842-11 (yellow 10 m, equipped with winder) ×1,

Measurement Cable L9842-22 (red 20 m, equipped with winder) ×1,

Carrying Case C0106 ×1, Protector ×1,

LR6 Alkaline battery ×4,

Instruction manual ×1
