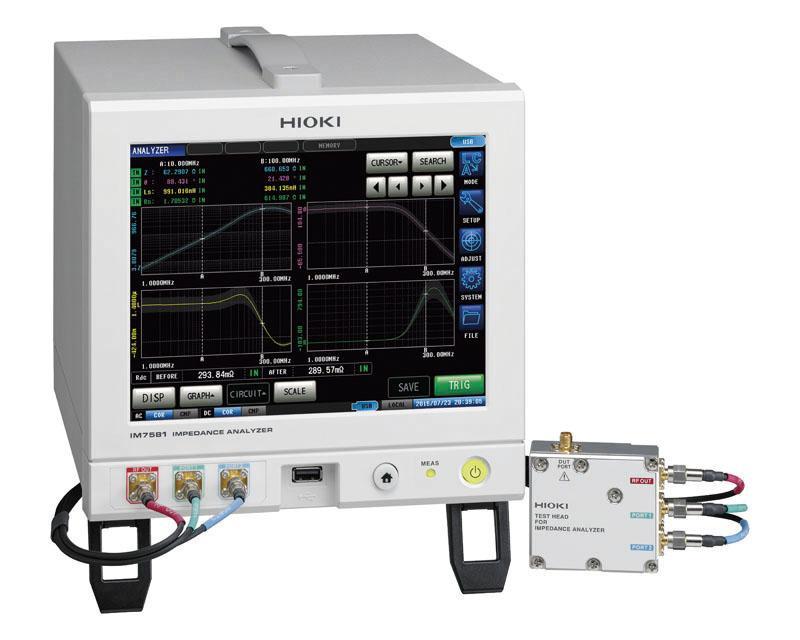

Measurement modes: LCR mode, Analyzer mode, Continuous measurement mode
Measurement parameters:Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
Measurable range: 100 mΩ to 5 kΩ
Display range:
- Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ)
- Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99)
- θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF)
- D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS)
- G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %)
Basic accuracy Z: ±0.72 % rdg. θ: ±0.41°
Measurement frequency: 1.0000 MHz to 300.00 MHz (5 digits resolution)
Measurement signal level:
- Power: -40.0 dBm to +7.0 dBm
- Voltage: 4 mV to 1001 mVrms
- Current: 0.09 mA to 20.02 mArms
Output impedance: 50 Ω
Display: 8.4-inch color TFT with touch screen
Measurement speeds *1FAST: 0.5 ms (Analog measurement time, typical value)
Functions: Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation
Interfaces: EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional)
Power supply: 100 to 240 V AC, 50/60 Hz, 70 VA max.
Dimensions and mass:
- Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 268 mm (10.55 in) D, 6.5 kg (229.3 oz)
- Test head: 61 mm (2.40 in) W × 55 mm (2.17 in) H × 24 mm (0.94 in) D, 175 g (6.2 oz)
Accessories: Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1
| Measurement modes | LCR mode, Analyzer mode (Sweeps with measurement frequency and measurement level), Continuous measurement mode |
|---|---|
| Measurement parameters | Z, Y, θ, Rs (ESR), Rp, X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q |
| Measurable range | 100 mΩ to 5 kΩ |
| Display range | Z: 0.00 m to 9.99999 GΩ / Rs, Rp, X: ± (0.00 m to 9.99999 GΩ) Ls, Lp: ± (0.00000 n to 9.99999 GH) / Q: ± (0.00 to 9999.99) θ: ± (0.000° to 180.000°), Cs, Cp: ± (0.00000 p to 9.99999 GF) D: ± (0.00000 to 9.99999), Y: (0.000 n to 9.99999 GS) G, B: ± (0.000 n to 9.99999 GS), Δ%: ± (0.000 % to 999.999 %) |
| Basic accuracy | Z: ±0.72 % rdg. θ: ±0.41° |
| Measurement frequency | 1.0000 MHz to 300.00 MHz (5 digits resolution) |
| Measurement signal level | Power: -40.0 dBm to +7.0 dBm Voltage: 4 mV to 1001 mVrms Current: 0.09 mA to 20.02 mArms |
| Output impedance | 50 Ω |
| Display | 8.4-inch color TFT with touch screen |
| Measurement speeds *1 | FAST: 0.5 ms (Analog measurement time, typical value) |
| Functions | Contact check, Comparator, BIN measurement (classification), Panel loading/saving, Memory function, Equivalent circuit analysis, Correlation compensation |
| Interfaces | EXT I/O (Handler), USB communication, USB memory, LAN, RS-232C (optional), GP-IB (optional) |
| Power supply | 100 to 240 V AC, 50/60 Hz, 70 VA max. |
| Dimensions and mass | Main unit: 215 mm (8.46 in) W × 200 mm (7.87 in) H × 268 mm (10.55 in) D, 6.5 kg (229.3 oz) Test head: 61 mm (2.40 in) W × 55 mm (2.17 in) H × 24 mm (0.94 in) D, 175 g (6.2 oz) |
| Accessories | Test head ×1, Connection cable ×1, Instruction manual ×1, LCR application disc (Communications user manual) ×1, Power cord ×1 |
