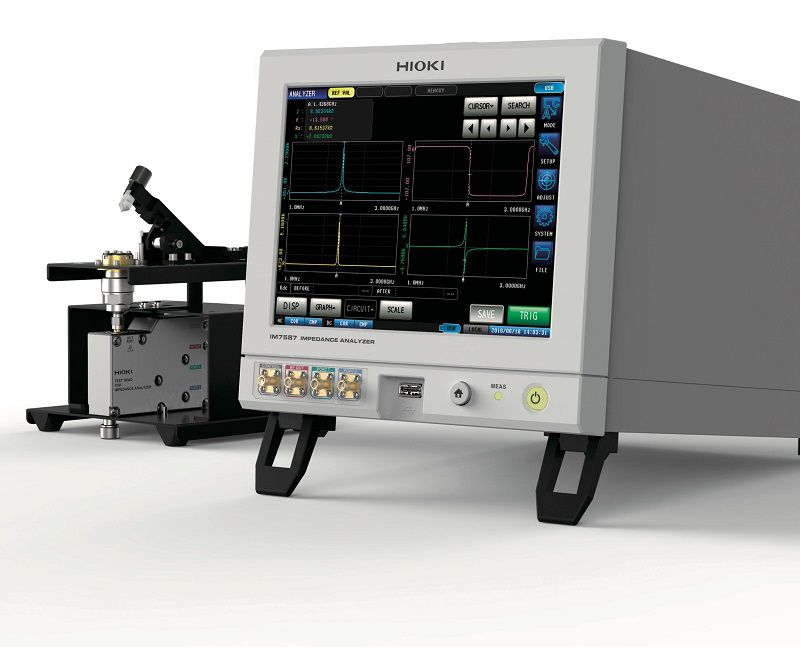

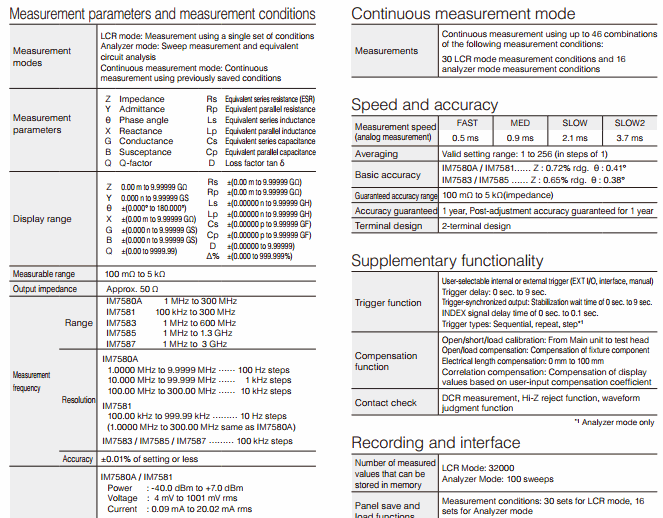

Measurement frequency 1 MHz to 3 GHz
Measurement range L : 0.0053 nH to 0.795 mH
C : 0.011 pF to 1.59 μF
(Depending on the measurement frequency)
Measurement signal level -40.0 dBm to +1.0 dBm
Basic accuracy Z : 0.65% rdg. θ: 0.38°
Display range
Z:0.00 m to 9.99999 GΩ
Y:0.000 n to 9.99999 GS
θ:±(0.000° to 180.000°)
X:±(0.00 m to 9.99999 GΩ)
G:±(0.000 n to 9.99999 GS)
B:±(0.000 n to 9.99999 GS)
Q:±(0.00 to 9999.99)
Rs:±(0.00 m to 9.99999 GΩ)
Rp:±(0.00 m to 9.99999 GΩ)
Ls:±(0.00000 n to 9.99999 GH)
Lp:±(0.00000 n to 9.99999 GH)
Cs:±(0.00000 p to 9.99999 GF)
Cp:±(0.00000 p to 9.99999 GF)
D:±(0.00000 to 9.99999)
Δ%:±(0.000 to 999.999%
Measurement speed
(analog measurement)
FAST MED SLOW SLOW2
0.5 ms 0.9 ms 2.1 ms 3.7 ms
Maximum voltage ±42 Vpeak (AC+DC)
Number of measured
values that can be
stored in memory
LCR Mode: 32000
Analyzer Mode: 100 sweeps
Display 8.4-inch color TFT with touch panel
M7580A / IM7581
Approx. 215 W×200 H×268 D mm (8.46 W×7.87 H
×10.55 D in), approx. 6.5 kg (229.3 oz)
IM7583 / IM7585 / IM7587
Approx. 215 W×200 H×348 D mm (8.46 W×7.87 H
×13.7 D in), approx. 8.0 kg (282.3 oz)
