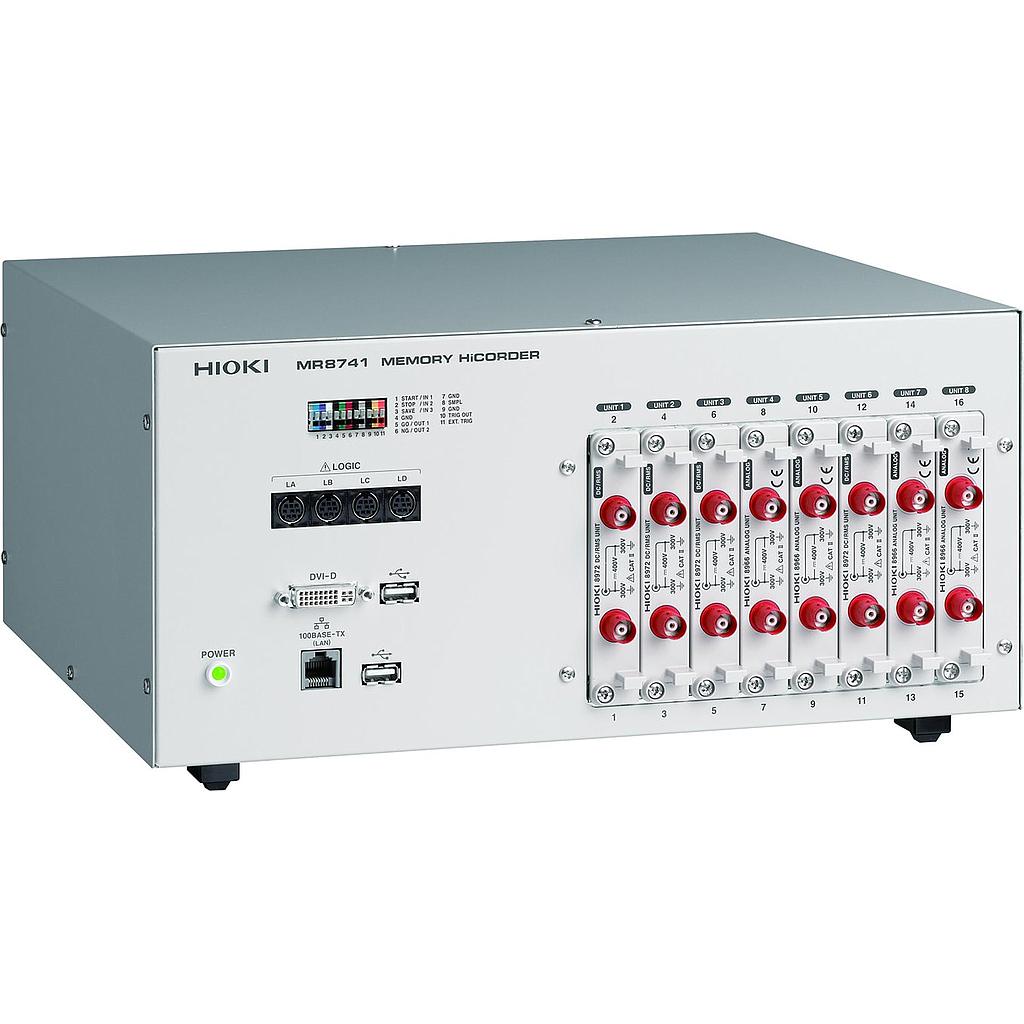

Hioki MR8741 MEMORY HiCORDER

Specification
- Number of channels:
+ 16 ch analog + 16 ch standard logic/[8 analog units]
+ 10 ch analog + 64 ch logic / [5 analog units + 3 logic units]
- Measurement ranges:
+ 5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range
+ 5 mV to 50 V/div, 5 ranges, resolution : 1/50,000 of range
- Max. allowable input: 400 V DC
- Frequency characteristics: DC to 5MHz
- Time axis: 5 μs to 5 min/div; 26 ranges; time axis resolution: 100 points/div
- Measurement functions: Memory (high-speed recording), FFT
- Memory capacity: : 16 MW/ch (fixed), total of 256 MW installed
- External storage: USB memory stick (USB 2.0)
- Display: None (1 digital DVI terminal per block, 800 × 600 dots)
- External interfaces: LAN, USB2.0
- Power supply: 100 to 240 V AC, 50/60 Hz (120 VA max.)
- Dimensions, mass: 350×160×320mm, 5.4 kg
- Supplied accessories: Instruction Manual ×1, Application Disk (Wave Viewer Wv, Communication Commands table) ×1, Power cord ×1
- The warranty period: 12 month
