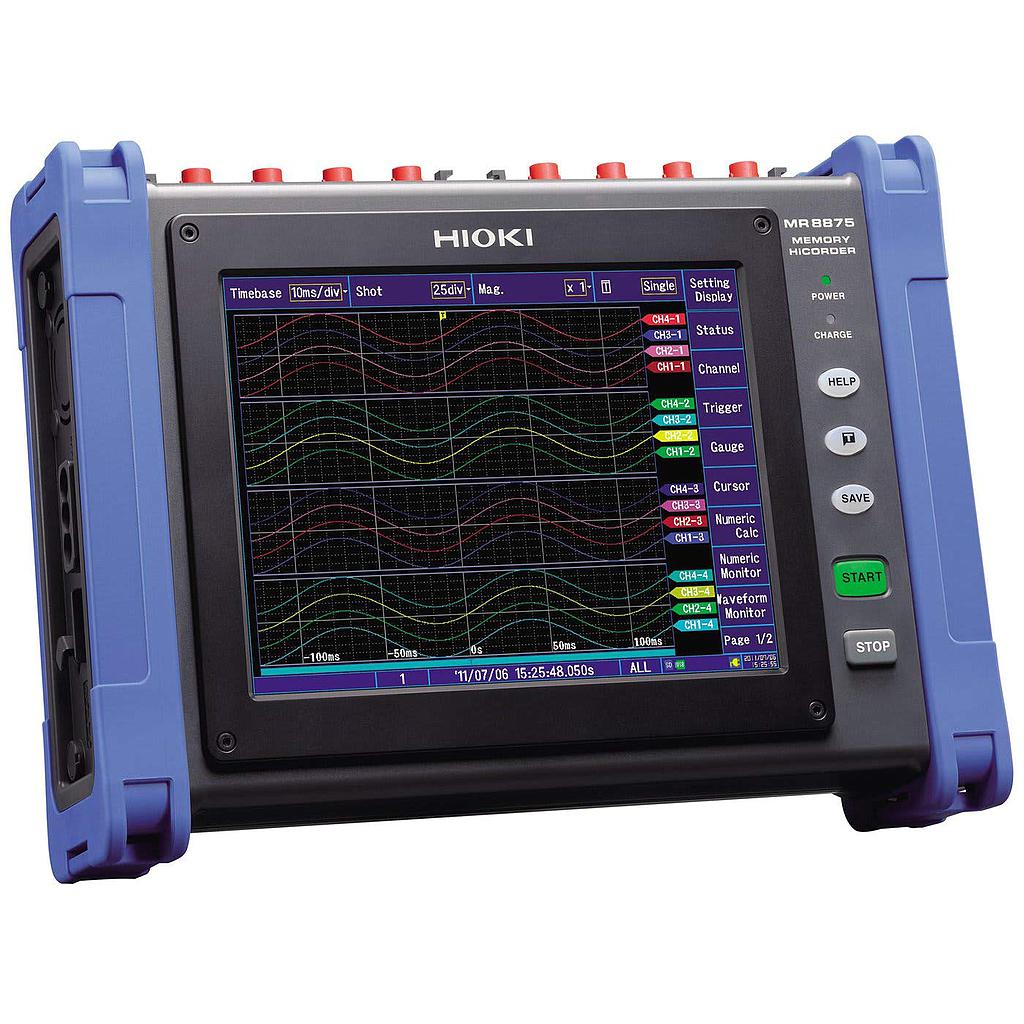

Hioki MR8875 MEMORY HiCORDER

Specification
- Number of input units: Up to 4 slots
- Number of channels:
+ Max. 16 analog channels
+ standard 8 logic channels
+ 2 pulse channels
- Measurement ranges: 5 mV to 10 V/div, 11 ranges, resolution : 1/1250 of range
- Max. rated voltage:
+ Between terminals: 150V DC
+ Between terminal to earth: 100V AC, DC
- Frequency characteristics: DC to 100 kHz
- Time axis: 200 µs to 5 min/div, 21 ranges, sampling period: 1/100 of range, External sampling possible
- Measurement functions: High-speed function, Real-time calculation between channels, FFT calculation, or other functions
- Storage memory capacity: Total 32 M-words
- Removable storage: SD Card slot × 1, USB 2.0 memory
- Display: Touch-panel operation 8.4-inch SVGA-TFT color LCD
- Communication interfaces: LAN, USB
- Power supply:
+ AC ADAPTER Z1002: 100 to 240 V AC (50/60 Hz), 56 VA
+ BATTERY PACK Z1003: 7.2 V DC, 36 VA
+ External DC Power: 10 to 28 V DC, 56 VA
- Dimensions, mass: 298 mm (11.73 in) W × 224 mm (8.82 in) H × 84 mm (3.31 in) D, 2.4 kg
- Supplied accessories: Instruction Manual ×1, Measurement Guide ×1, AC ADAPTER Z1002 ×1, Protection sheet ×1, USB cable ×1, Shoulder Strap ×1, Application Disk
- The wararnty period: 12 month
