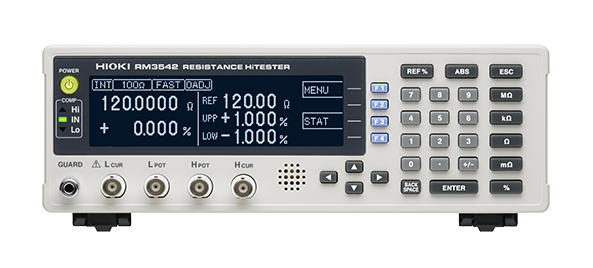

Hioki RM3542 HiTESTER Resistance Tester

Specification
- Resistance range:
+ 100 mΩ(Max.120mΩ, 0.1μΩ resolution)) to 100MΩ(Max.120MΩ, 100Ω resolution), 10 steps
+ 1000mΩ(Max.1200mΩ, 1μΩ resolution) to 1000Ω(Max.1200Ω, 1mΩ resolution), 4 steps
- Display:Monochrome graphic LCD 240 × 64 dot, white LED backlight
- Measurement accuracy:
+ 100mΩ ±0.015 % rdg. ±0.002 % f.s.
+ 1000 Ω ±0.006 % rdg. ±0.001 % f.s
- Testing current:
+ 100mΩ range: 100mA DC
+ 100MΩ range: 100 nA DC
- Open-terminal voltage: 20 V DC max.
- Sampling rate: FAST, MEDIUM, SLOW, 3 settings
- Measurement times:
+ 100 Ω /1000 Ω ranges: FAST: 0.9 ms, MED: 3.6 ms, SLOW: 17 ms (minimum time)
- Integration time: 0.1 ms to 100.0 ms, or 1 to 5 PLC at 50 Hz, 1 to 6 PLC at 60 Hz
- Other functions: Comparator , Delay, OVC (offset voltage compensation), Measurement fault detection, Probe short-circuit detection, Improve contact, Auto-memory, Statistical calculations, Settings monitor , Trigger function
- Interface: RS-232C, Printer, GP-IB (Model RM3542-01)
- External I/O: Trigger, Hold input, Comparator output, Settings monitor terminal
- Power supply, consumption: 100 to 240 V AC, 50/60 Hz, 30 VA max.
- Dimensions, mass: 260 mm (10.24 in) W × 88 mm (3.46 in) H × 300 mm (11.81 in) D, 2.9 kg (102.3 oz)
- Supplied accessories: Power cord × 1, EXT I/O male connector × 1, Operation manual × 1, Operation guide × 1
- The warrnty preiod: 12 month
