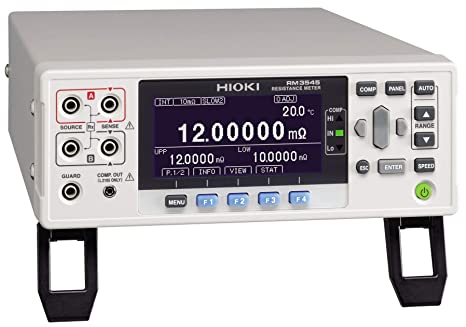

HIOKI RM3545 Resistance Meter (10 ~ 1000 mΩ)

Resistance range: 10 mΩ (12.00000 mΩ display Max., 10 nΩ resolution) to 1000 MΩ range (1200.0 MΩ display Max., 100 kΩ resolution), 12 steps

[LP ON] 1000 mΩ (1200.00 mΩ display Max., 10 µΩ resolution) to 1000 Ω range (1200.00 Ω display Max., 10 mΩ resolution), 4 steps

Measurement accuracy: ±0.006 % rdg. ±0.001 % f.s.

Testing current: 1 A DC to 1 µA or less [LP ON] 1 mA to 5 μA DC

Open-terminal voltage: 20 V DC (10 kΩ range or more), 5.5 V DC max. (1000 Ω range or less)

[LP ON] 20 mV DC max.

Temperature measurement: -10.0 to 99.9 °C, accuracy: ±0.50 °C (Temperature Sensor Z2001 and RM3545 combined accuracy), -99.9 to 999.9°C (analog input)

Measurement speed: FAST (2.2ms) / MED (50Hz: 21ms, 60Hz: 18ms) / SLOW1 (102ms) / SLOW2 (202ms)

Functions: Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/ REF%), BIN, key-lock (OFF, menu lock, all lock), display digit count selection function (7- digit/ 6-digit/ 5-digit), automatic power supply frequency settings (AUTO/ 50Hz/ 60Hz), scaling, judgment sound setting, auto hold, averaging, statistical calculations, panel store/panel load, D/A output.

Communication interfaces: Select from GP-IB, RS-232C, Printer (RS-232C), or USB . Remote function, communications monitor function, data output function, memory (50)

Power supply: 100 V to 240 V AC, 50 Hz/60 Hz, Rated power consumption: 40 VA max.

Dimensions and mass: 215 mm (8.46 in) W × 80 mm (3.15 in) H × 306.5 mm (12.07 in) D, 2.5 kg (88.2 oz)

Accessories: Power cord ×1, Clip type lead L2101 ×1, temperature sensor Z2001 ×1, Male EXT I/O connector ×1, Instruction manual ×1, Application disc ×1, USB cable (A-to-B type) ×1, Spare fuse ×1
