Read-Compatible Models: PW3360 series, PW3365 series, 3169 series
Supported Computer OS: Computers running Windows 10 (32-bit/64-bit), Windows 8/8.1 (32-bit/64-bit), Windows 7 SP1 or later (32-bit/64-bit)

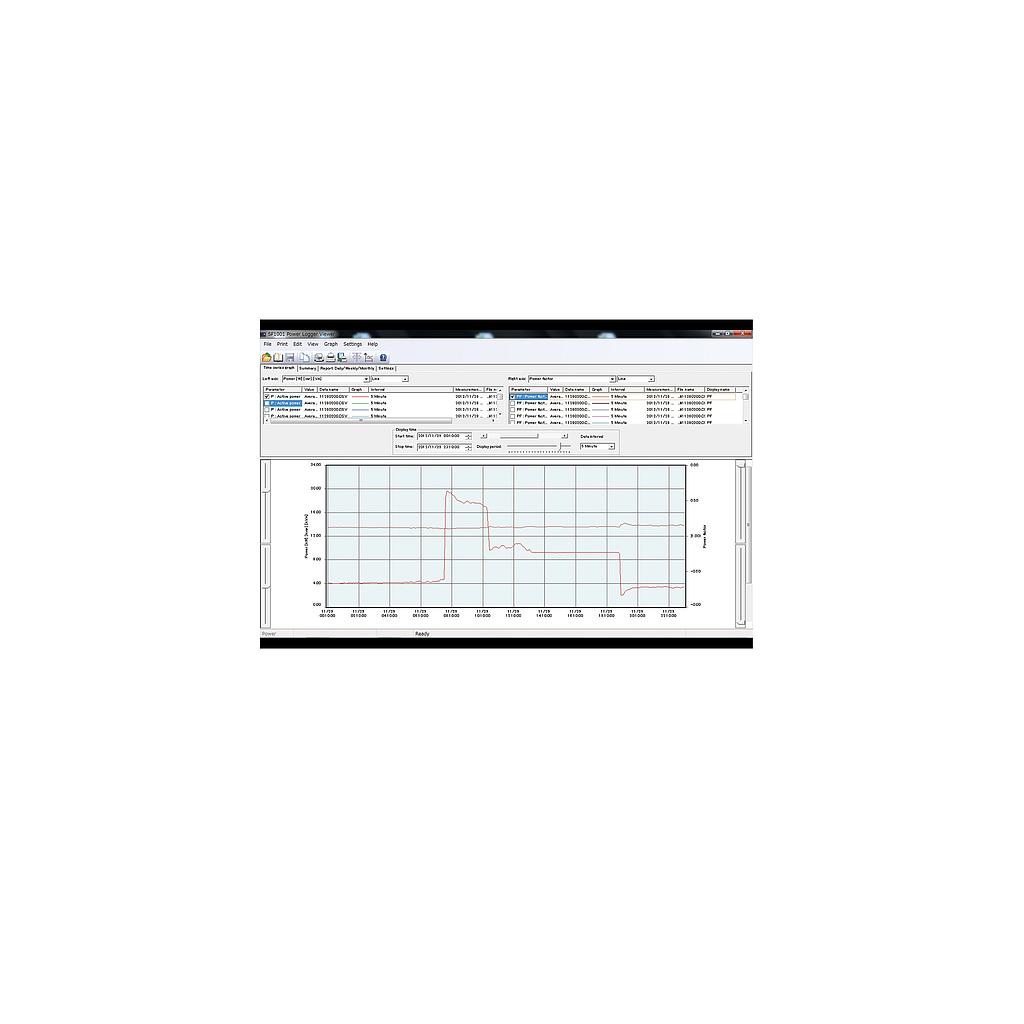

Trend Graph Display Function:
[Display Items]: Voltage, Current, Active Power, Reactive Power, Apparent Power, Power Factor, Frequency, Integrated Active Power, Integrated Reactive Power, Demand Volume, Demand Value, Voltage Disequilibrium Factor, Pulse, Harmonics (Level, Content, Phase Angle, Total Value, THD)
[Stacked Bar Graph Display]: Up to 16 data series can be displayed in an overlay graph
[Cursor Measurements]: Measurement values can be displayed using a cursor
Summary Display Function:
Displayed items are the same as in Trend Graph Display
[Daily, Weekly, and Monthly Report Displays]: Accumulates and displays daily, weekly, and monthly reports over a specified period
[Load Factor Calculation Display]: Calculates and displays load factor and demand factor results with daily, weekly, and monthly reports
[Time Span Aggregation]: Aggregates data into up to four specified time spans
Waveform Display:
Displays waveform data at the specified data points
Harmonic Display:
[List Display]: Displays a list of harmonic data for a specified date
[Graph Display]: Displays a bar graph of harmonic data for a specified date
[Cursor Calculation]: Calculates measurement data at cursor positions in waveform and graph displays
Copy Function:
Captures any display image to the clipboard
Print Function:
Preview and print contents shown on trend graphs, reports, harmonic graphs, and settings displays
[Comment Entry]: Text comments can be added to any printout
[Header/Footer Settings]: Sets the header and footer for each printout
[Printing Support]: Supports any color or monochrome printing supported by the operating system
Report Printing:
Print static contents over a specific time period
[Output Contents]: Standard or selected output items
[Available Output Items]: Trend graph, summary, daily report, harmonic list, harmonic graph, waveform
[Report Creation Method]: Standard print
[Report Output Settings]: Save/load report output settings
