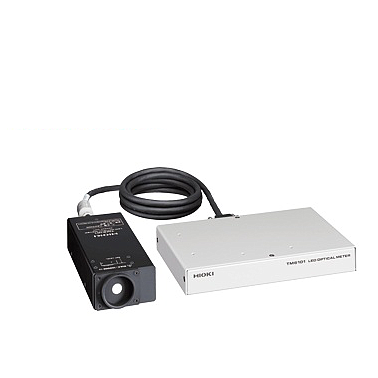

Hioki TM6101 Led optical meter (100 Klux)
ManufacturerHIOKI(View more products from this manufacturer)
ModelTM610
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
SPECIFICATIONS
- Measurement range: 100 lx to 100,000 lx
- Measurement items:
+ Illuminance, Luminous fl ux, Luminous Intensity
+ Chromaticity
+ Color Rendering Index
+ Correlated Color Temperature and Δuv
+ Dominant wavelength and excitation purity
- Accuracy
+ ±5 %, 23 ± 5 °C / 80 % rh
+ After Dark compensation ± 5 °C, Best range setting
- Post-correction backup: saved on the connected computer
- Interface: USB2.0, Digital I/O
- Optical detector: Incoming radiation diameter] Φ11.3 mm±0.1 mm
- Measurement function:
+ Control, Trigger function
+ Averaging, Auto-range function
- Display:
+ Illuminance, Luminous flux, Luminous Intensity
+ Chromaticity, Color Rendering Index, Correlated
+ Color Temperature, Dominant wavelength
- Power supply: AC adapter 9418-15 (AC100 to 240V, 50/60Hz, 6VA)
- Product Net Weight: 550 ± 50g
- Product Size: 70*39.5*172mm
- Supplied accessories:
+ AC ADAPTER 9418-15 × 1, USB cable × 1
+ Main unit-Sensor Connection cable (2m) × 1
+ Light blocking cap × 1, Instruction manual × 1
+ CD-R (PC application software Measurement library) × 1
+ Screw for connection port × 4, Ferrite core × 3
- The warranty period: 12 month
| Measurement items | (1) Illuminance, Luminous fl ux, Luminous Intensity (2) Chromaticity (3) Color Rendering Index (4) Correlated Color Temperature and Δuv (5) Dominant wavelength and excitation purity |
||||
| Measurement range | [Illuminance] 100 lx to 100,000 lx | ||||
| Accuracy | [Illuminance] ±5 % (Luminous intensity standard light bulb 1000 lx) 23 ± 5 °C / 80 % rh or lower, Warm-up time 60 minutes After Dark compensation ± 5 °C, Best range setting |
||||
| Compensation | Dark current compensation, Reference value compensation (Illuminance, Luminous Intensity, Luminous Flux, Chromaticity) | ||||
| Post-correction backup | Saving of user correction values: Reference value correction values can be saved on the connected computer |
||||
| Interface | USB2.0, Digital I/O (Input: External trigger, Output: End of measurement) | ||||
| Optical detector | [Incoming radiation diameter] Φ11.3 mm±0.1 mm | ||||
| Measurement function | Control, Trigger function, Averaging, Auto-range function | ||||
| Display | Illuminance, Luminous flux, Luminous Intensity, Chromaticity, Color Rendering Index, Correlated Color Temperature, Dominant wavelength | ||||
| Power supply | AC adapter 9418-15 (AC100 to 240V, 50/60Hz, 6VA) | ||||
| Dimensions, mass |
|
||||
| Supplied accessories | AC ADAPTER 9418-15 × 1, USB cable × 1, Main unit-Sensor Connection cable (2m) × 1, Light blocking cap × 1, Instruction manual × 1, CD-R (PC application software, Measurement library) × 1, Screw for connection port × 4, Ferrite core × 3 |
