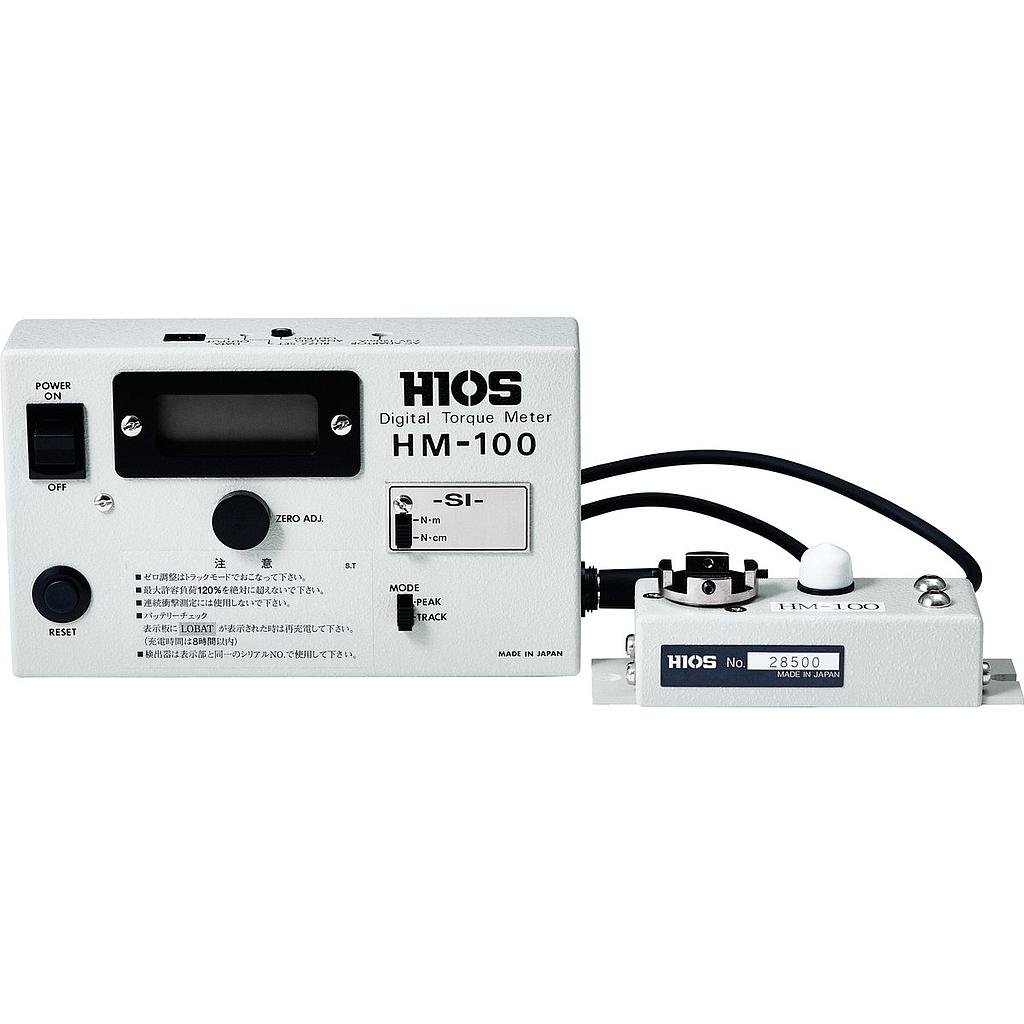

Peak mesuring range: (N・m) 0.15-10
(lbf・in) 15-1000
Accuracy: Within ±0.5% (F.S.)
Measuring models: TRACK, PEAK
External Dimensions(mm):
+ Display unit: 165 ×95 ×55 (H)
+ Detector: 119×45×33(H)
Weight(g):
+ Torque display: 1 kg
+ Detector: 0.35 kg
Detectorcord: 1.7m (P/N: DPC-0506)
Charging time: 6V NiMH (within 8 hours)
Continuous operating time ona full charge: 30 hours
Battery life: About 300 charges
Exclusive battery charger: Input： AC100V,120V,220-240V
Output：DC 7.2V 120mA
Manual
Feature
Use for torque control of screwdrivers for automatic assembly machines
● Measured data can be imported to a computer.
● Up to 100 data items can be stored in the memory and controlled (applicable to HP and HDP only).
● With one unit of Torque Meter, max, min and ave torque values can be measured (applicable to HP and HDP only).
● New product, HP-1 is ideal for measuring 10N･cm or smaller torque.
● Torque for both clockwise or counterclockwise can be measured.
● As a standard specificataon, data output and analogue output are available.
● We offer calibration and maintenance services.
● “Inspection Report” is attached to all the Torque Meters.
