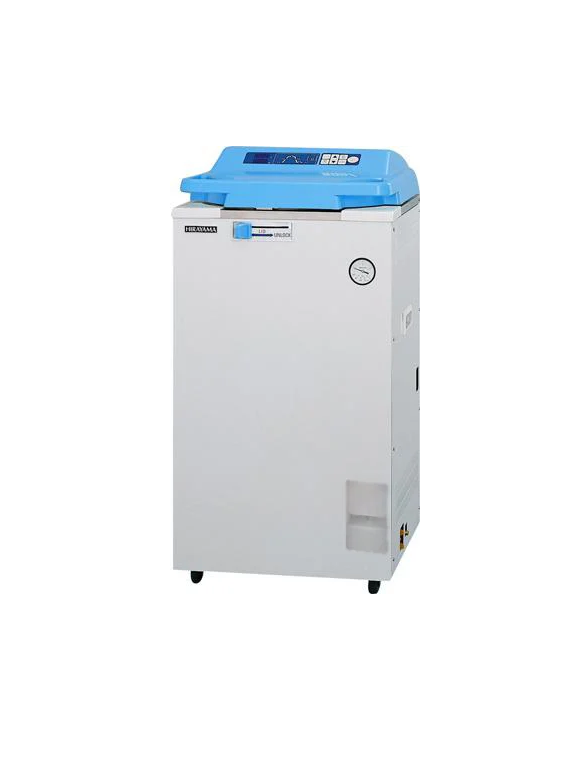

HIRAYAMA HV-110II LB Autoclaves (105 ～ 135℃, 110ℓ)

Classification of MD/LB: LB

Chamber dimension: φ420 ×D795 ㎜

Chamber volume: 123.7ℓ

Effective capacity: 110ℓ

Temp.Settings

Sterilization temperature: 105 ～ 135℃ variable

Dissolution temperature: 60 ～ 100℃ variable

Warming temperature: 45 ～ 60℃ variable

Lid lock tempe: LIQUID, AGAR, DISSOL modes: 60 ‒ 95℃ variable, SOLID, WASTE modes: 60 ‒ 97℃ variable ※

Time settings:

Sterilization timer: 1 ‒ 250 min, The remaining time is displayed.

Dissolution timer: 1 ‒ 60 min, The remaining time is displayed

Auto-start timer: 1 min later ‒ 1 week later, A start date and time is set

Air removal time: 6 ‒ 18 min variable

Mode selection: LIQUID, SOLID, WASTE, AGAR, DISSOL/ 8 programs

Exhaust settings: 3 steps (No exhaust, Fine exhaust, Small amount of exhaust)

Maximum working pressure: 0.255MPa

Thermometer: Digital disaply 5.0 ～ 137.9℃

Pressure gauge: Digital display 0-0.3 MPa/Analog display 0-0.4 MP

Outside dimension (in mm): W667×D652×H1206

Weight (approx.): 89 ㎏

Pressure vessel category: Small sized pressure vesse

Chamber material: Stainless steel (SUS 304)

Power souree: AC220/230/240V, 50/60Hz (specify voltage when ordering)

Power consumption: 4.0kW

Power cord connection: Ring terminal (A plug is not supplied.)

Datasheet
