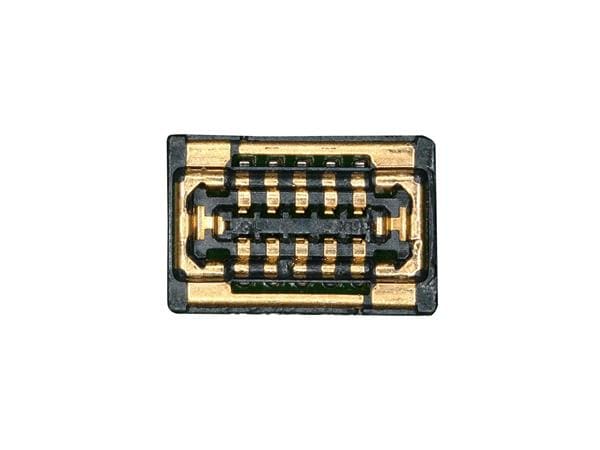

Pitch: 0.35 mm (0.014 in)
Unit Weight: 5.300 mg
Stack Height: 0.6 mm
Current Rating: 1 A
Mounting Angle: Vertical
Mounting Style: PCB Mount
Number of Rows: 2 Row
Voltage Rating: 30 V
Contact Plating: Gold
Contact Material: Copper Alloy
Housing Material: Liquid Crystal Polymer (LCP)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 10 Position
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
