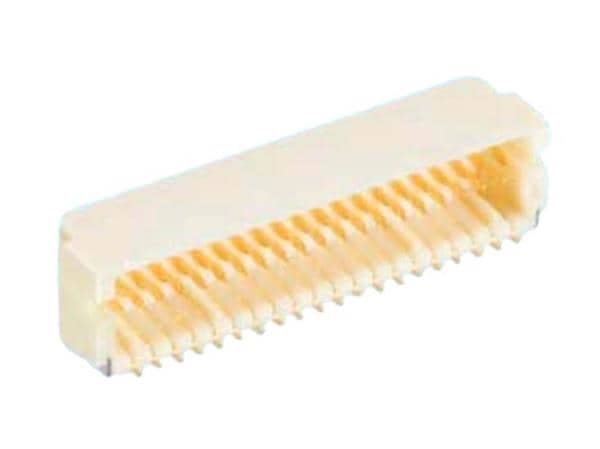

Pitch: 1 mm (0.039 in)
Wire Gauge: 32 AWG to 28 AWG
Application: Wire-to-Board
Row Spacing: 1 mm (0.039 in)
Housing Color: Brown (Beige)
Latching Type: Friction Lock
Contact Gender: Pin (Male)
Current Rating: 1 A
Mounting Angle: Right Angle
Mounting Style: SMD/SMT
Number of Rows: 2 Row
Voltage Rating: 100 V
Contact Plating: Gold
Contact Material: Phosphor Bronze
Housing Material: Polyamide (PA)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 20 Position
Insulation Resistance: 500 MOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 35 C
