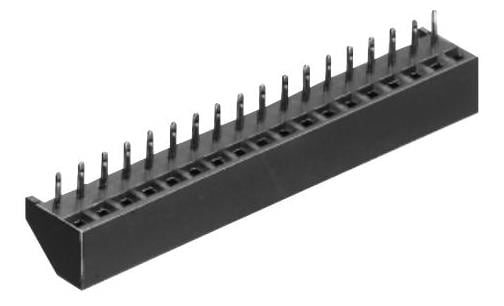

Pitch: 2.54 mm (0.1 in)
Unit Weight: 1 g
Current Rating: 300 mA
Mounting Angle: Straight
Number of Rows: 1 Row
Voltage Rating: 250 V
Contact Plating: Tin
Contact Material: Phosphor Bronze
Housing Material: Polyamide (PA)
Termination Style: Solder
Flammability Rating: UL 94 V-0
Number of Positions: 11 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 55 C
