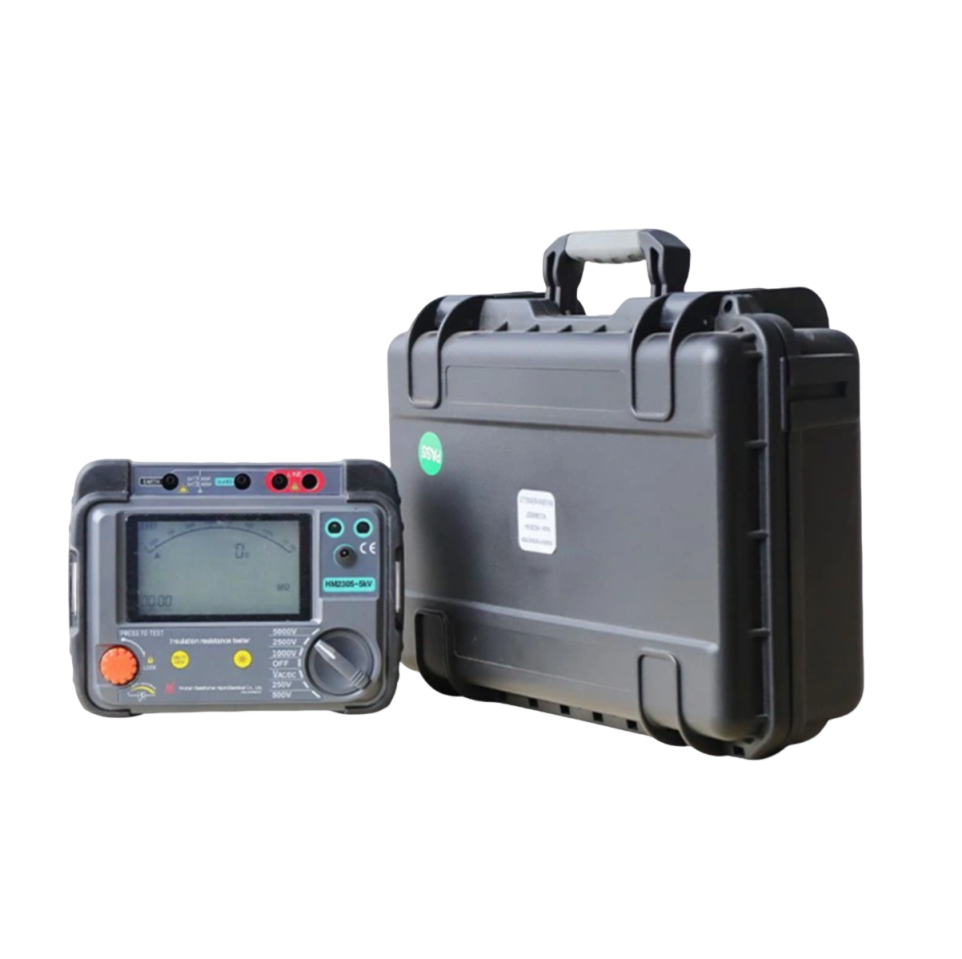

HMDQ HM2305 Insulation Resistance Tester Handheld (5kV)

Rated voltage: 250V; 500V; 1000V; 2500V; 5000V

Measuring Range:

250V: 0.1～100.0MΩ

500V: 0.1～99.9MΩ; 80～1000MΩ

1000V: 0.1～99.9MΩ; 80～999MΩ; 0.80～2.00GΩ

2500V: 0.1～99.9MΩ; 80～999MΩ; 0.80～9.99GΩ; 8.0～100.0GΩ

5000V: 0.1～99.9MΩ; 80～999MΩ; 0.80～9.99GΩ; 8.0～99.9GΩ; 80～20000GΩ

Display range:

250V: 0.1~100.0 MΩ

500V: 0.1~1000 MΩ

1000V: 0.1M~2.00 GΩ

2500V: 0.1M~100.0 GΩ

5000V: 0.1M~2000 GΩ

Open circuit Voltage:

DC250V; +10% ,-10%

DC 500V; + 20%,-10%

DC 1000V; + 20%,-0%

DC 2500V; +20%,-0%

DC5000V; +20%,-0%

Rated Current

1MΩ load: 1mA~1.2mA (1000V)

2.5MΩ load: 1mA~1.2mA (2500V)

5MΩ load: 1mA~1.2mA (5000V)

Short-circuit Current: 5mA±0.5mA

Accuracy:

±5%±3dgt (250V; 500V, 1000V, 2500V)

±5%±3dgt±20% (5000V)
