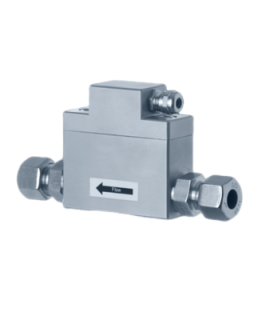

Sensor type / design: Thermal flow sensor TA Di designed as measuring tube
Dimension:
measuring tube inside diameter Ø Di [mm]: 8.0
installation length L [mm]: 80 mm + SRV
installation height h [mm]: 65
Measuring gases: air, clean gases, gas mixtures with constant ratio of mixture
Materials in contact with the medium: stainless steel 1.4571, 1.4305, 1.4404, glass, epoxy resin, silicone (silicone-free on request), FKM
Measuring ranges air/nitrogen:
basic types / measuring range: 60 m/s
in m³/h: 0.04 ... 11
in kg/h: 0.05 ... 13
in l/min: 0.6 ... 181
in m/s: 0.2 ... 60
1 m³/h equates to [m/s]: 5.53
Permissible temperature:
medium: -10 ... +140 °C
ambient: -25 ... +140 °C
Pressure resistance: max. 16 bar / 1.6 MPa above atmospheric greater than 16 bar / 1.6 MPa on request
For more details, see datasheet.
