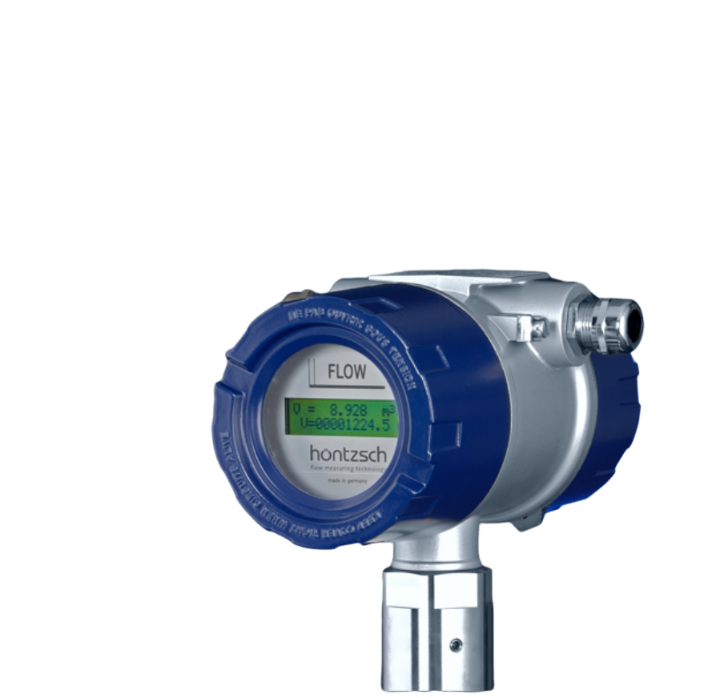

Sensor type / design: Thermal flow sensor TA Di Ex-d as measuring tube with flameproof enclosure
Dimension:
measuring tube inside diameter Ø Di [mm]: 16
installation length L [mm]: 480mm
installation height h [mm]: 282
Measuring gases: air, clean gases, gas mixtures with constant ratio of mixture
Materials in contact with the medium: stainless steel 1.4571, 1.4305, 1.4404, glass, epoxy resin, silicone (silicone-free on request), FKM
Measuring ranges air/nitrogen:
basic types / measuring range: 120 m/s
in Nm³/h: 0.15 ... 86
in kg/h: 0.18 ... 104
in Nl/min: 2.4... 1448
in Nm/s: 0.2 ... 120
1 Nm³/h equates to [Nm/s]: 1.38
Permissible temperature:
medium: -10 ... +140 °C
ambient: -20 ... +60 °C
Pressure resistance: max. 16 bar / 1.6 MPa above atmospheric greater than 16 bar / 1.6 MPa on request
For more details, see datasheet.
