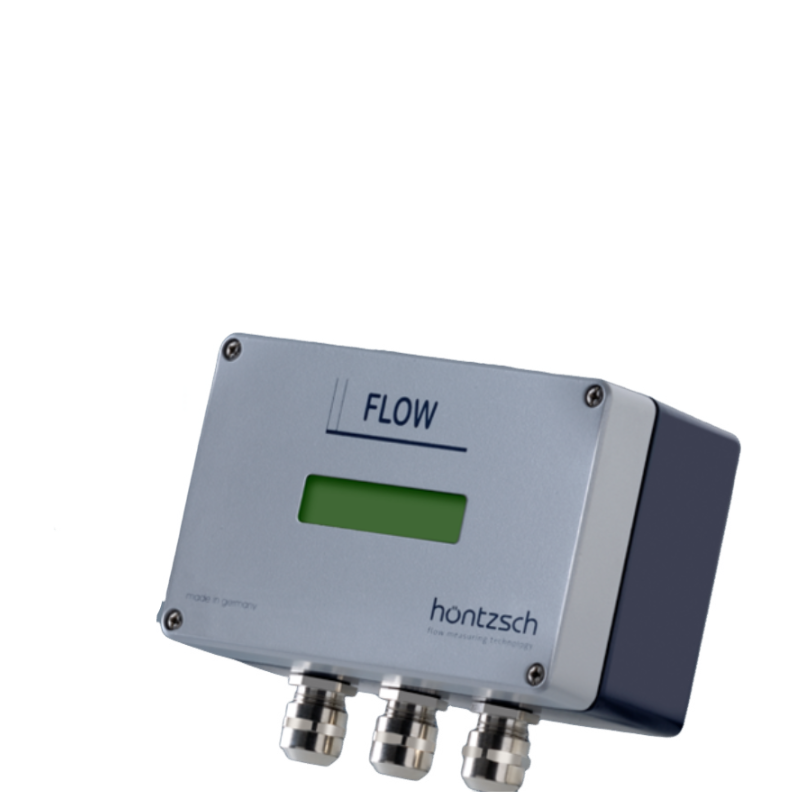

Transducer type: input flow v/FA or v/FAR
Outputs: analog output v, flow velocity/flow rate: 4 ... 20 mA = 0 ... x m/s (or m³/h),
Power supply: 230 V AC (215 ... 255 V AC), 50 ... 60 Hz, output < 10 VA
Housing: aluminium housing AS102
Dimensions L/B/H: 150/100/80 mm bush for shielded cables with outside diameter 5 ... 10 mm, contacting of Cu overall shielding by the metallic screwed cable glands
Working temperature range
without display : -25 ... +60 °C
with display : -25 ... +60 °C
For more details, see datasheet.
