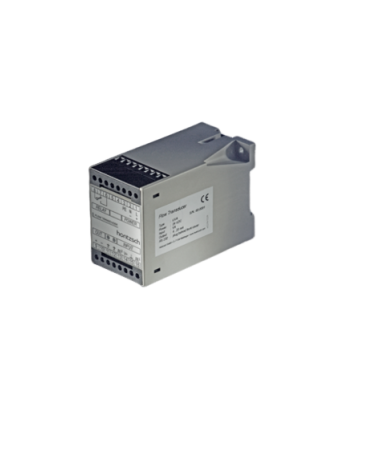

For use with vortex flow sensors VA40 and VA Di for measuring flow rate and flow velocity
Transducer type: UVA
Outputs: 4 ... 20 mA
Power supply: 230 V AC (215 ... 255 V AC), 50 ... 60 Hz, output < 10 VA
Housing
Macrolon mounting rail housing LDG16: dimensions B/H/D = 55/75/110 mm, for 35 mm rail (DIN EN 60715 and SN EN 50022) or screwed connection
Connection: protected terminal screws according to DIN VDE 0100 and VGB4, for conductors with cross sections from 0.14 ... 4 mm²
Protection: IP20, IEC 529 and EN 60 529
EMC: EN 61 000-6-2 / IEC77
Working temperature range: 0 ... +50 °C
For more details, see datasheet.
