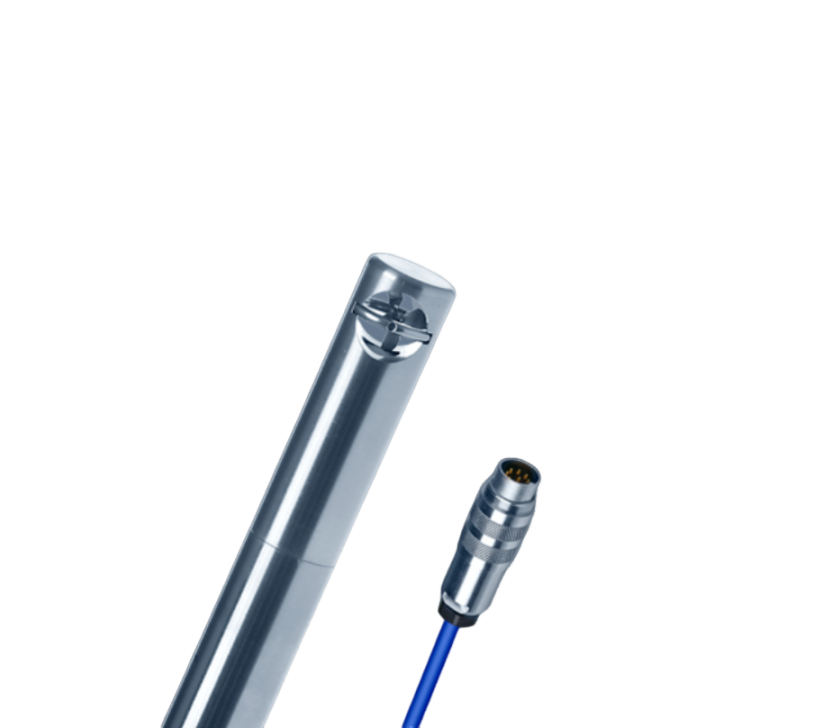

Sensor type: cyclindrical probe with ± directional sensing
Sensor diameter: head diameter 25 mm
Shaft diameter: -
Medium: air/gases and water/ liquids
Material in contact with the medium: stainless steel
Material sensor: stainless steel 1.4404/AISI 316L, 1.4305, 1.4571
Material sealing: FKM, PTFE, graphite
Others: PVDF, vespel, ceramics Al2O3
Vane wheel type: mn20
Measuring range air/gases: 0.4 ...20 m/s
Temperature of the medium: -40 ... +240 °C
2 m fixed high temperature cable in front of cable amplifier + 1.5 m low temperature cable (max. +105 °C) behind cable amplifier
Max. working pressure: up to 6 bar / 0.6 MPa overpressure
For more details, see datasheet.
