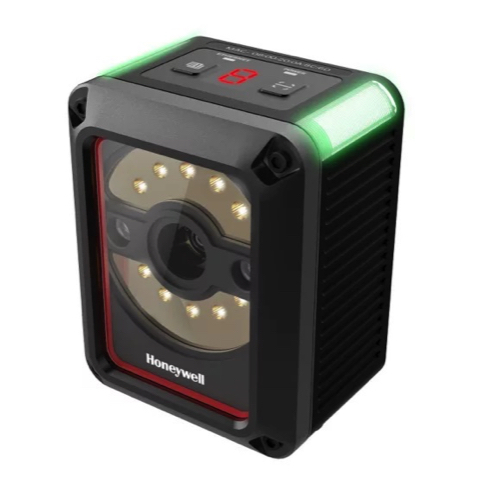

Honeywell HF810 Fixed Mount Scanners (1D, PDF, 2D, DPM)

MECHANICAL

Dimensions (H x W x D): 70 mm x 55 mm x 45 mm

Weight: 180g

Lens: Liquid Lens

ELECTRICAL

Input Voltage: 240V

Output Current: 24VDC / 5A

Communication: RS232, RS485, TCP/IP, Field Bus Protocol (Profinet, EthernetIP, Modbus TCP)

ENVIRONMENTAL

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 70°C

Humidity: 5% to 95% relative humidity, non-condensing

IP Rating: IP65

SCAN PERFORMANCE

Scan Pattern: Area image

Resolution: 0.5 MP

Scan Angle: Horizontal: 20-39° (Narrow vs. Wide FOV)

Vertical: 11-22° (Narrow vs. Wide FOV)

Decode Capability: Reads standard 1D, PDF, 2D (QR, Datamatrix, Maxicode, Aztec) DPM
