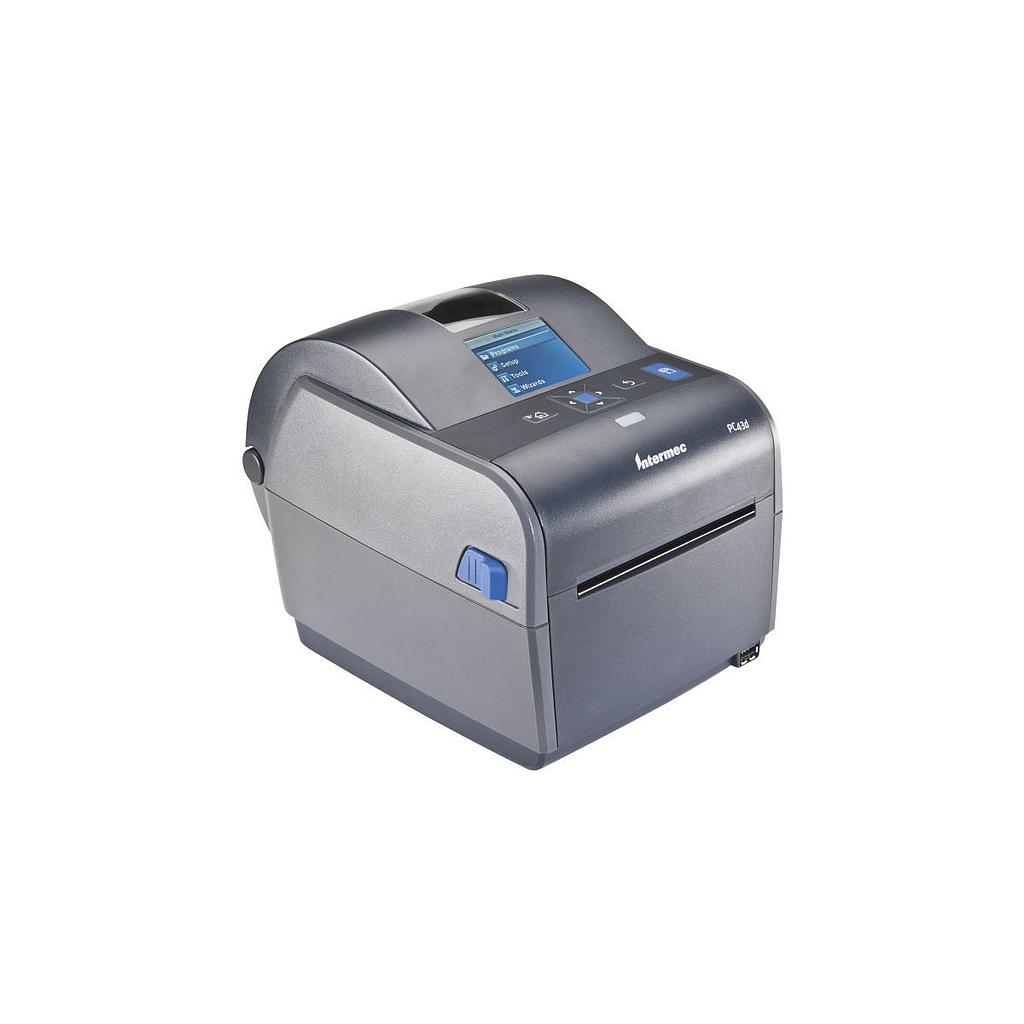

Honeywell PC43d Desktop Printers (203 dpi/300 dpi; Direct thermal)

Dimensions (H x W x D): 167 mm x 180 mm x 215 mm (6.6 in x 7.1 in x 8.4 in)

Weight: 1.72 kg (3.8 lb)

Print Resolution: 8 dots/mm (203 dpi) or 12 dots/mm (300 dpi)

Print Width:

203 dpi – max. 104 mm (4.1 in)

300 dpi – max. 106 mm (4.2 in)

Printing Speed: Selectable up to 8 ips (203.2 mm/ sec) for 203 dpi; 6 ips (152.4mm/sec) for 300 dpi

Paper Width: Max. 118 mm (4.7 in); Min. 19 mm (0.75 in)

Label Roll:

Maximum Diameter: 127 mm (5 in)

Core Diameter: Min. 25.4 mm (1 in); Max. 38.1 mm (1.5 in)

Ribbon Roll: 12.7 mm (0.5 in) and 25.4 mm (1.0 in) core
