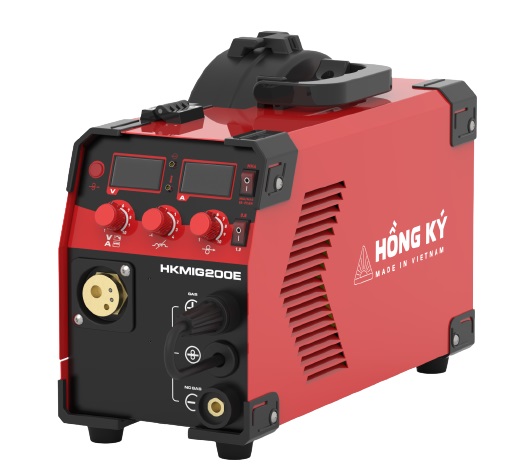

Hồng Ký MIG200E Electronic welding machine

- MIG welding without gas with cored wire

- MIG welding using CO2 gas with solid core wire

- Stick welding (MMA)

- Replaceable MIG welding gun

- Output current 160A

- Using solid core welding wire using CO2 gas - Steel

- Using non-gas-based flux-cored welding wire – Steel

- MIG welding 0.8 - 1.0mm (160A)

- Welding rod 2.6 - 3.2mm (140A)

- Main application of welding iron and steel (cored steel welding wire),

- Support more stainless steel welding (non-gas core stainless steel welding wire, stainless steel solid core combined with mixed gas),

- Family use or small processing production facilities. Compact machine, convenient to move

Input source: single phase 220V AC, +/- 15%, 50-60Hz

Welding function (rated output):

+ MIG : 160A , 22V DC 30%

+ MMA: 140A, 25.6V DC 35%

Welding current range in current stabilized source (CC) mode :

MMA : 20-140A

Voltage range in voltage stabilized (CV) welding source mode :

MIG : 17-22V

No-load voltage:

+ MIG: 60V

+ MMA : 60V

Input current when output is loaded (50/60Hz, 1 phase):

+ MIG : 33.6A

+ MMA: 33.7A

KVA capacity : 7.3

Power KW : 4.4

Dimensions (length x width x height) mm : 426 x 180 x 290

Weight: 9kg

Included accessories:

+ Removable MIG gun

+ Soldering pliers 200A

+ 200A . mass clamp

+ 3m welding pliers wire, 2m mass clamp wire
