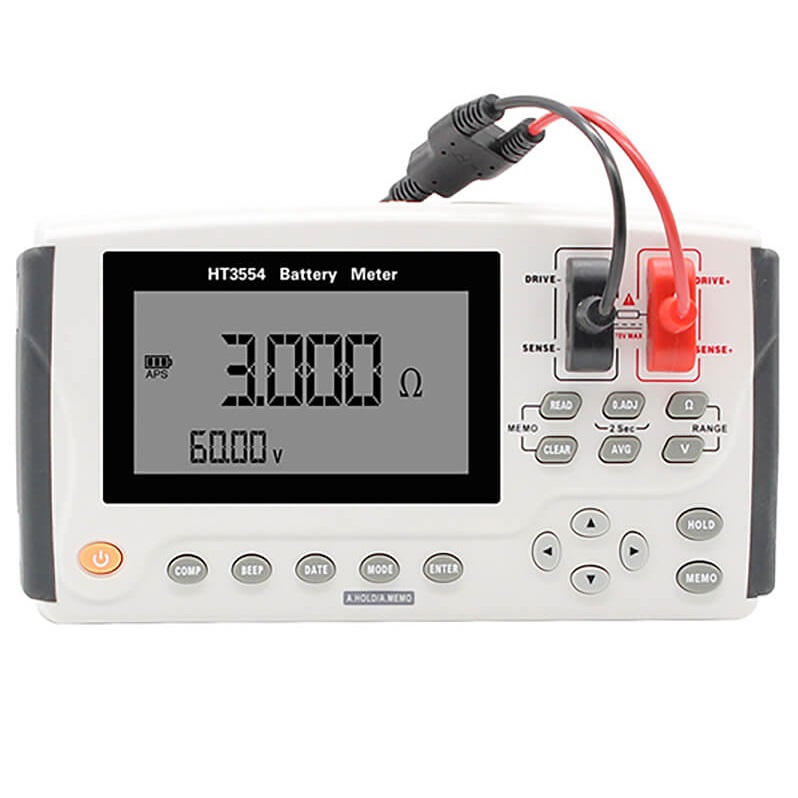

Display: 4.3 inch VFD display
Measurement items: ESR, DCV
Basic accuracy:
- Resistance: ±1%
- Voltage: ± 0.05%
Measurement range:
- Resistance: 0.001mΩ ～ 3.100Ω
- Voltage: 0.0001V～60.000V
Signal source: AC 1kHz, Test current: <150mA
Range:
- Resistance: 3mΩ/30mΩ/300mΩ/3Ω
- 4 ranges in all
Sampling rate: 1 meas/sec (the average number optional)
Temperature: Range:-10°C ~60°C; Accuracy:±1°C
Correction: Short-circuit reset for all ranges
Comparator: 200 set WARNING/FAIL/PASS sorting
Internal data storage: Store up to 2400 set test data
Trigger: Internal/auto trigger
Interface: USB, EXPORT(port execution hold function)
Power supply: 12V/1700mAh lithium battery, AA (LR6) Alkaline Batteries x 8
Maximum rated power: 4VA
Dimensions: 208 mm (L) x120mm (W) x 52.5mm (D),without sleeve, weight:0.81kg
Included accessory: HT9363B, HT9371, HT9348, USB mini cable, charger, 0370 belt
