Max test force(kN) (can be extended): 2kN

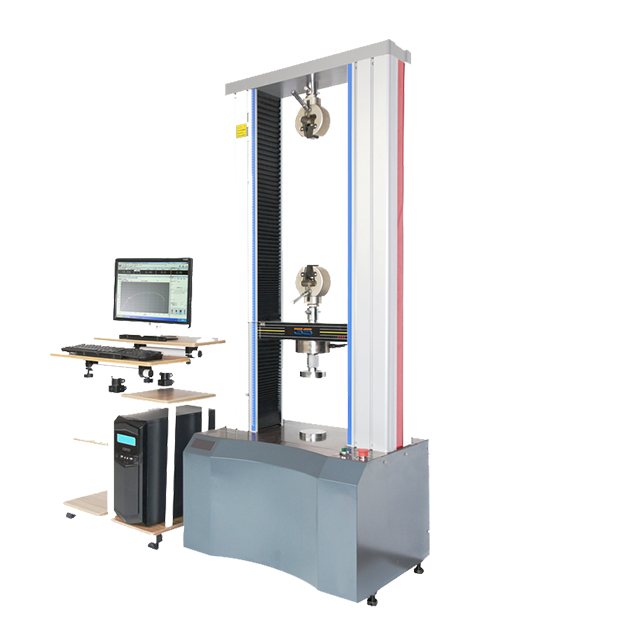

Structure: Four columns floor type (upper tensile, lower compression / upper compression, lower tensile)
Control method: Computer automatic control
Test accuracy: 0.5 class
Test force test arrange(F•S): 0.4%~100%F•S( stepless )
Force Resolution: 1/500,000 of Max. force, without step division
Large deformation measuring range: 10-800mm
Large deformation indication error: ≤±0.5%
Large deformation measurement resolution: 0.008mm
Deformation measuring range: 0.2%~100%FS
Deformation value relative error: ≤±0.5%
Displacement resolution: 0.04um
Displacement value relative error: ≤±0.5%
Range of force control rate adjustment: 0.005~5%FS/S
Test force value relative error: ≤±0.5%
Speed adjust range: 0.001~500mm/min
Speed error: ≤±0.5%
Effective tensile space: 850mm(Contain the grip)
Effective compression space: 850mm(Contain the grip)
Effective test width: 400mm
Pressure plate diameter: 100mm
Dimension: 750*520*1830mm (Can be customized)
Weight: 300KG around
Power supply: AC220V±10%,50Hz, 0.75KW
Standard Accessories: Decelerator, PC, printer, Smartest software, wedge tensile grip, jaws, compression platen, Multiple loadcells in one machine is available.
