Testing Force: 187.5 kgf
Indenter: 2.5 mm carbide ball indenter
Testing Range: 100–650 HBW
Max. Specimen Height: 320mm
Throat Depth: 100mm
Accuracy:
Hardness Range: HBW≤ 250; 250＜HBW≤450; HBW＞450
Permissible Error: ≤± 3％; ± 2.5％; ± 2.0％
Repeatability:
Hardness Range: BW≤ 250; 250＜HBW≤450; HBW＞450
Permissible Repeatability: ≤ 3.0 ％; ≤ 2.5 ％; ≤ 2.0％
Net Weight: 5.1kg
Standard Delivery:
Instrument Main Body
Hardness Block HBW/3000/10
Hardness Block HBW/750/05
2.5 mm carbide ball indenter
Hexagon Wrench
V-shaped Anvil
40X Measuring Microscope
Instrument Manual
Flat Anvil
Hemispherical Anvil
Brinell Hardness Table
Qualified Certificate

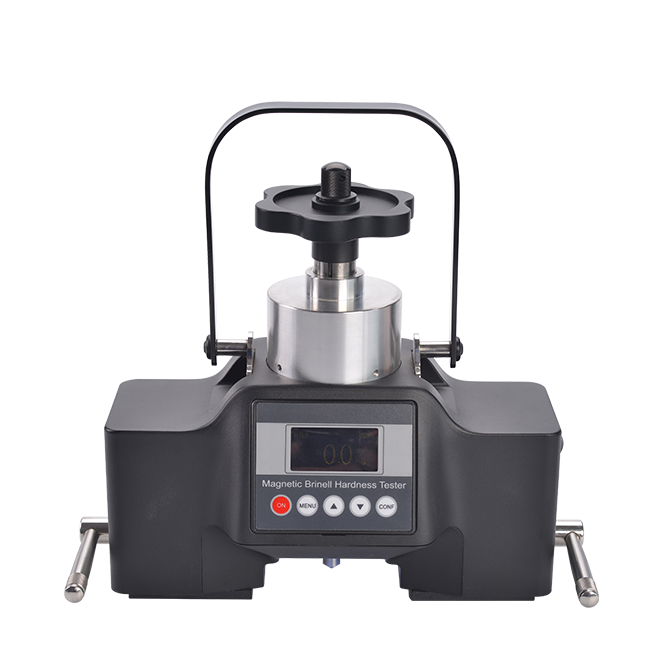

PHB-200 is a Magnetic Brinell hardness tester. It uses a magnetic chuck to fix the Brinell hardness tester on the surface of the steel part to complete the hardness test. It adopts hydraulic principle and applies 187.5 kgf test force by hand operation. It can test the smallest and the most accurate in-field Brinell hardness tester. It is Easy operation with very high accuracy. And only one side of the work piece needs to be reached. The Force and dwell time display on LED screen. It gives you bright and clear view at lighted test point. The Equipped test blocks are available for daily verification.
