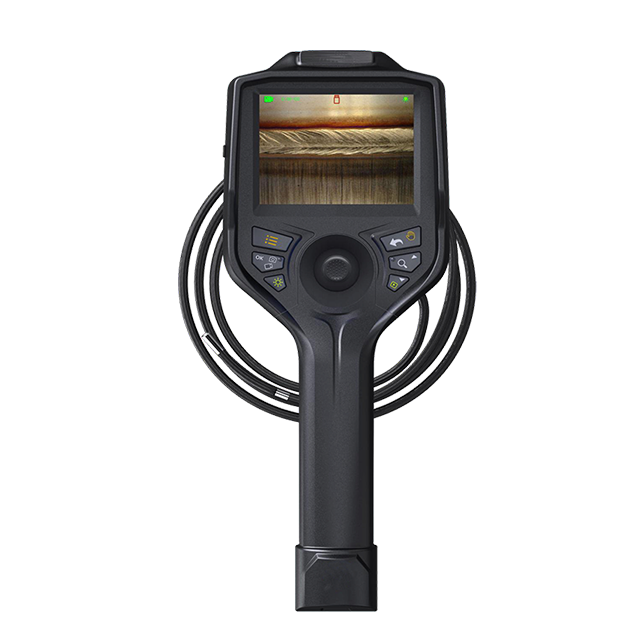

Hoyamo VA-350 Videoscope

Probe System:

Probe Diameter(mm): Φ3.9mm; Φ6.0mm

Camera Pixels: 1MPiexel(1280x720)

DOF: 5-80mm//10-100mm/50mm-∞

FOV: 120°

Light Source: LED (optional: optic fiber)

Illuminance:

It can be up to 20,000 Lx

It can be up to 100,000 Lx

Tube Length:

1.0Meter (Customized: 2/3/4/5 Meter)

1.5Meter (Customized: 2/3/4/5/6/7/8Meter)

Articulation: 360° joystick control

Bending Angle: Maximun:190°（8m tube:100°）

Display Monitor System:

Display: 3.5 inches TFT LCD

Image Resolution: 1280×720

IP Level: Probe/tube: IP67

Temperature Indication: High temperature alarm(optional）

Image/Video Format: JPEG/MOV

Data Port: HDMI video output, Micro USB port

Working Time: ≥8h

Zoom In/Out: 4X

Battery Capacity: 3.7V，3200mAh×2

Power Charge: DC5V，maximum current: 1A

Weight: 0.55Kg-0.8Kg

Accessories:

Storage: Standard TF card: 16G, Maximum: 32G

Power Supply: Detachable lithium batteries

Standard Configuration: Instrument case/ videoscope/ battery/ card reader/ TF card/charger/ USB cable/ manual
