Image Sensor: 5M CMOS
Monitor:
Built-in: 10.4" LCD (XGA 1024X768)
Outside: 24" LCD (XGA 1920X1080)
Acceptance Lens: Double Telecentric Lens
Light:
Casting Illumination System: Four-segment illumination(White Light)
Transmission Illumination System: Telecentric transmission illumination(Green Light)
Field:
Large Field: ø100xL200mm
High Precision: -
Repeatability of Image Meas.:
Large Field:
Without Stitching: ±1 µm
With Stitching: ±2 µm
High precision:
Without Stitching: -
With Stitching:-
Accuracy of Image Meas.:
Large Field:
Without Stitching: ±5 µm
With Stitching: ±(7+0.02L) µm
High precision:
Without Stitching: -
With Stitching: -
Physical probe: no
Resolution: 0.1 µm
XY object table:
X travel range: 110mm
Y travel range: -
loading capacity: 2kg
Z axis travel range: 35mm (Motorized)
Size: 500x280x670mm (LxWxH)
Weight: 30kg
Input: AC 100-240V, 50/60Hz, 2A
Working enviroment: temp. 10 °C-35 °C, humidity: 20-80%, vibration <0.002g, less than 15Hz

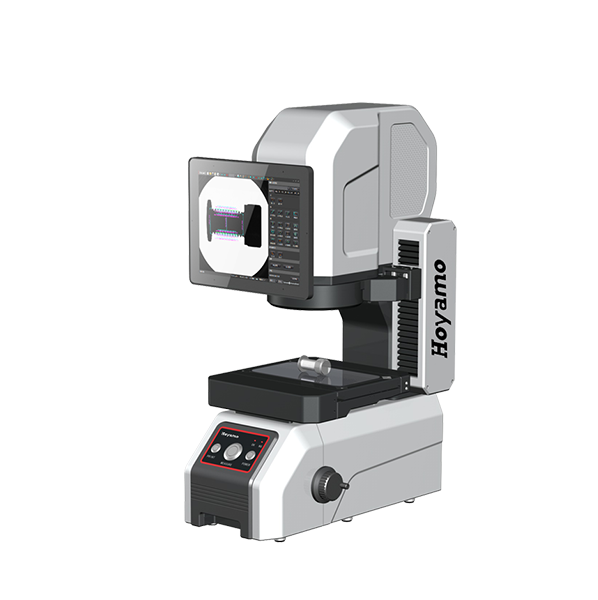

Instant Vision Measurement System
