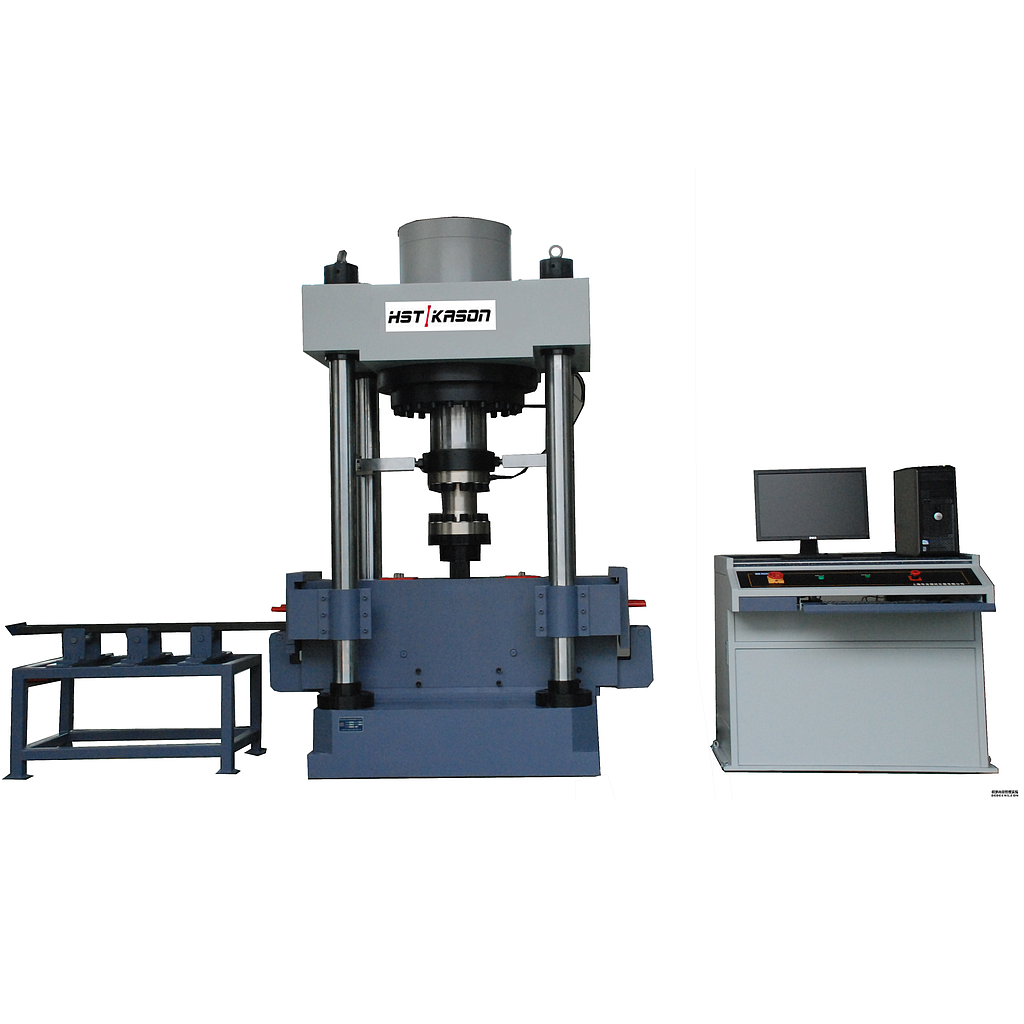

Application: designed for testing of rails after welding; analysis is performed at the edge of the weld collar of an aluminothermic weld, in order to examine one of the failure modes that occur in this weld type under high axle load conditions
Capacity: kN: 3000
Load resolution:
kN: Capacity/300, 000 (fully auto scaling of single measurement range)
Machine specifications
Stroke
in: 11.81
mm: 300mm
Testing speeds
in/s: 0.0276~0.0472
mm/s: 0.7～1.2
Loading rate
kN/S: 40~120
Bend test arrangement
Bearer span
in: 39.37±0.197
mm: 1000±5
Bearer radius
in: 0.984~2.756
mm: 25~70
