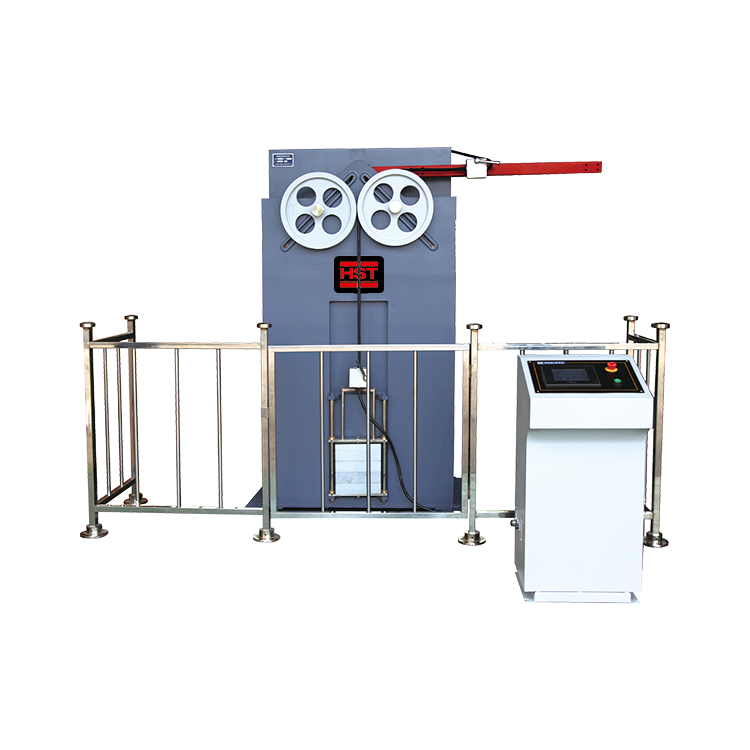

Application: intended to establish the ability of a fiber optic cable to withstand repeated bending (cyclic flexing).
Bending angle: ±90° degree
Max. bending cycles: 1 - 9999
Frequency range: 10 - 30 cycles/min
Bending radius (mm): 25, 50, 75, 100, 150, 500 (others upon request)
Mass of weights for applying tension: Weight structure 27.5kg, 3 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment.
Dimensions (L*W*H)
Working frame: 3,000*720*2,500 mm
Control console: 400*300 * 800 mm
Power: 3-phase 4-wire, 50Hz, 1 kW.
