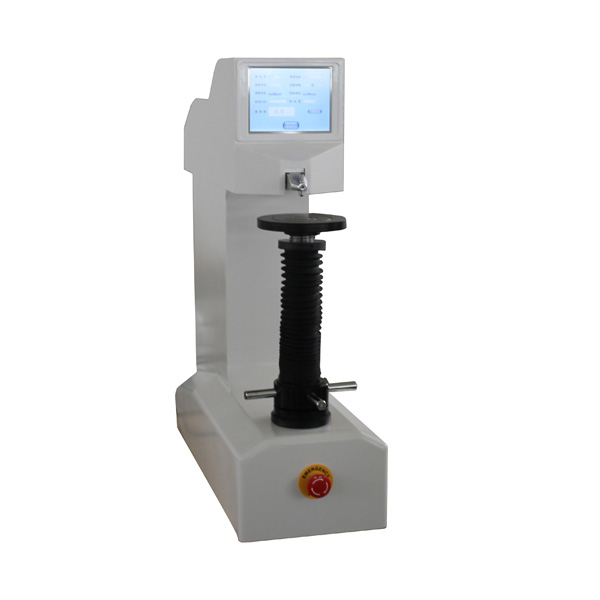

HST HRS-150DXC Nosed Automatic Rockwell Hardness Tester (built-in Printer)

Conversion Scale: Brinell, Vickers

Display of Hardness Value: Touchable Large LCD screen display

Data output: Inside Printer, RS-232

Duration time: 0-60s

Carried Standard: GB/T230.2 Chinese Standard, JJG112 Inspection Rule

Preliminary Testing force: 10kgf(98.07N)

Testing force: 60kgf(588N) 100kgf(980N) 150kgf(1471N)

Rockwell Scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK

Hardness measuring range: HRA:20-88 HRB:20-100 HRC:20-70 HRD:40-77

HRF:60-100 HRG:30-94 HRH:80-100 HRK:40-100

Test force Deviation: ≤0.5%

Testing accuracy: 0.1

Max Height of Specimen: 300mm

Distance of Indenter to outer wall: 200mm

Power supply: AC220V+5%,50-60Hz

Overall Dimensions: 710mm*250mm*880mm

Data Output: USB Flash Disk

Datasheet
