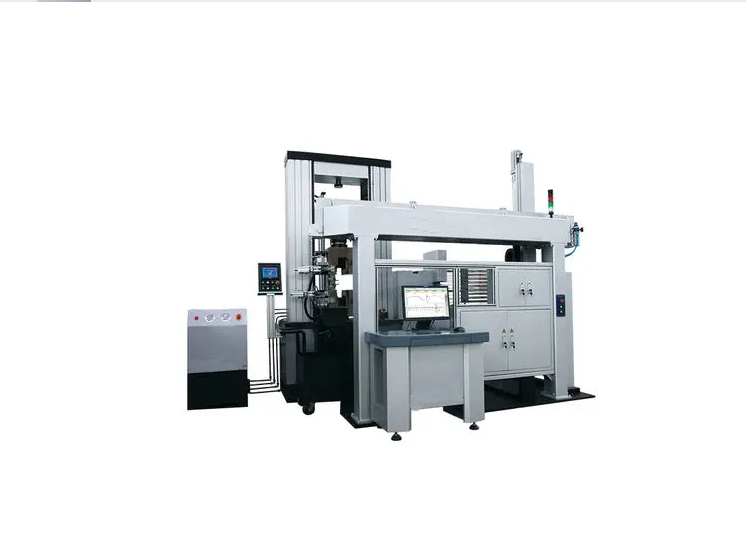

>> Main host and controller
Max. load: 600KN
Testing level: 0.5 Class
Driving way: Servo control, electric servo, medium control gas island
Test speed: 0.001-200mm/min stepless setting
Speed accuracy: ±0.5%
Full load speed and speed accuracy: 200mm/min, ±0.5%
Power supply: Three-phase 10kW
Host size: 1500* 900* 2780mm (width includes PLC manual box)
Oil source size: 380 * 550 * 600 mm
Complete equipment size: 4460* 2540* 2780 mm
Total weight: 9600kg
>> Load sensor
Measuring accuracy level: 0.5 class
Load resolution: 500000 yards (equivalent to 1.2N)
Stress control accuracy: ±0.5%
Strain control accuracy: ±0.5%
Displacement
Measurement range: 0 ~ 550mm
Digital longitudinal automatic extensometer
Accuracy level: Exceeds EN10002 level 0.5 standard;
Working temperature: 0--50 °C
Net weight (including measurement control unit): 26kg
>> Double-sided flat push hydraulic automatic stretching fixture
Double-sided push-pull hydraulic clamp: jaw clamping range: 0-60mm (can hold specimen with certain deflection)
Max. Clamping force: 904kN
Max. System pressure: 28.8MPa
>> Specimen double section size automatic measurement system
Specimen type: Rectangular shape specimen
Measurement accuracy: ±0.5%
Power supply: Single phase 220V±10%, 50Hz, 500W
