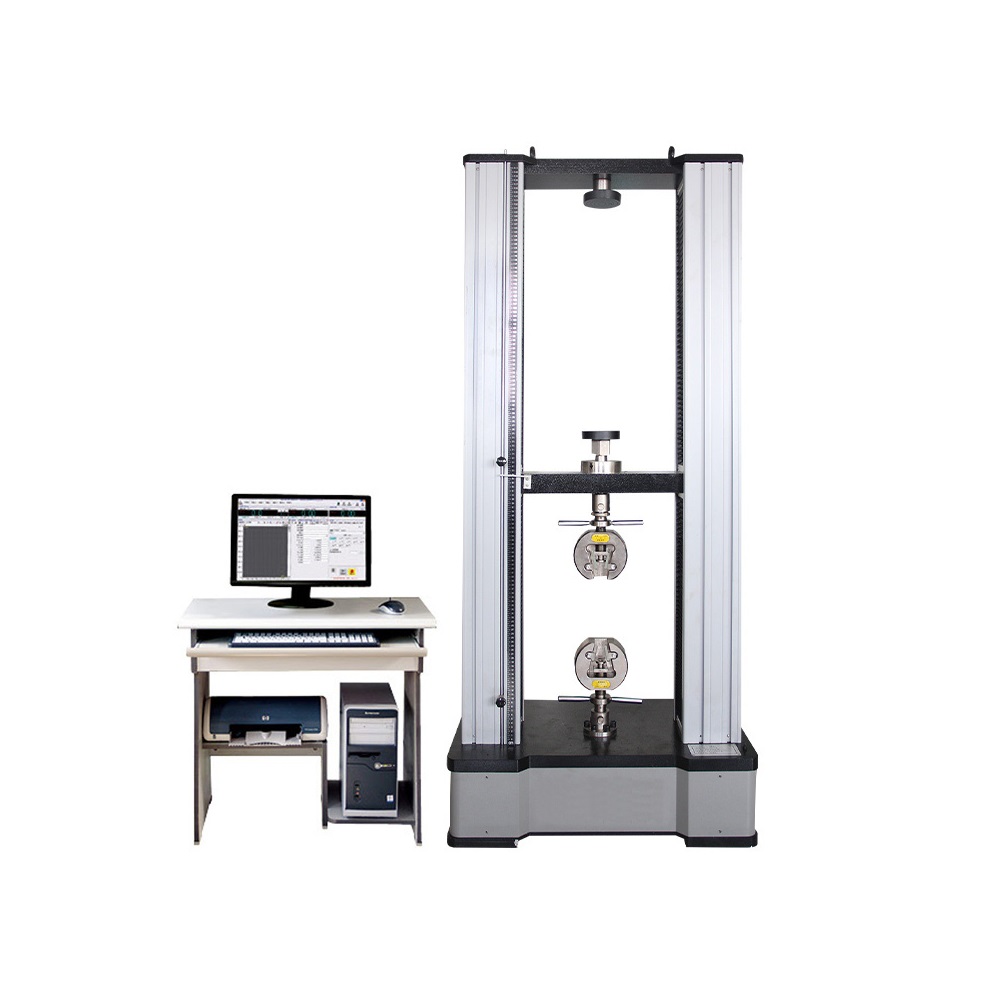

Application: used to test the bending resistance of various ceramic tiles, asbestos cement wave, asbestos cement slab, straw board, gypsum board, lightweight insulation material board, wood board, and various non-metal composite boards and research.
Max. Load(kN): 100
Resolution of deformation: 0.04um
Accuracy of displacement: Within±0.5%of indicating load
Resolution of displacement: 0.01mm
Test speed(mm/min): 0.05-500 stepless arbitrary setting
Speed accuracy: within ±1% / ±0.5% of set speed
E-Tensile space(mm): Customized
E-Compression space(mm): Customized
D-Test width(mm): 500 (can be customized)
F-Beam travel distance(mm): 1050
H-Workbench thickness(mm): 58
I-Base height(mm): 435
Power supply: AC220V±10%，50Hz/60Hz (can be customized)
