AC TRMS VOLTAGE
Range (V): 15 ~ 460
Resolution (V):1
FREQUENCY
Range (Hz): 47.50 ~ 52.50
Resolution (Hz): 1
CONTINUITY OF PROTECTION CONDUCTORS WITH 200mA
Range )
0.00 ~ 9.99
10.0 ~ 99.9
100 ~ 1999
INSULATION RESISTANCE
DC test voltage (V)/ Range
50
0.01 ~ 9.99
10.0 ~ 49.9
100
0.01 ~ 9.99
10.0 ~ 99.9
100 ~ 199
250
0.01 ~ 9.99
10.0 ~ 99.9
100 ~ 249
250 ~ 499 (5.0 rdg + 2dgt)
500
0.01 ~ 9.99
10.0 ~ 199.9
200 ~ 499
500 ~ 999
1000
0.01 ~ 9.99
10.0 ~ 199.9
200 ~ 999
1000 ~ 1999
MECHANICAL CHARACTERISTICS
Dimensions (L x W x H): 225 x 165 x 75mm (9 x 6 x 3in)
Weight (batteries included): 1.2kg (42 ounces)
Mechanical protection: IP40
POWER SUPPLY
Battery type: 6x1.5V alkaline batteries type AA IEC LR06 or
6 x1.2V rechargeable NiMH type AA
Battery life: > 500 tests for each function
Auto Power OFF: after 5 minutes’ idling (if activated)
ENVIRONMENTAL CONDITIONS FOR USE
Reference temperature: 23°C ~ 5°C (73°F ± 41°F)
Operating temperature: 0°C ~ 40°C (32°F ÷ 104°F)
Allowable relative humidity: <80%RH
Storage temperature: -10°C ~ 60°C (14°F ÷ 140°F)
Storage humidity: <80%RH
Max. operating altitude: 2000m (6562ft)

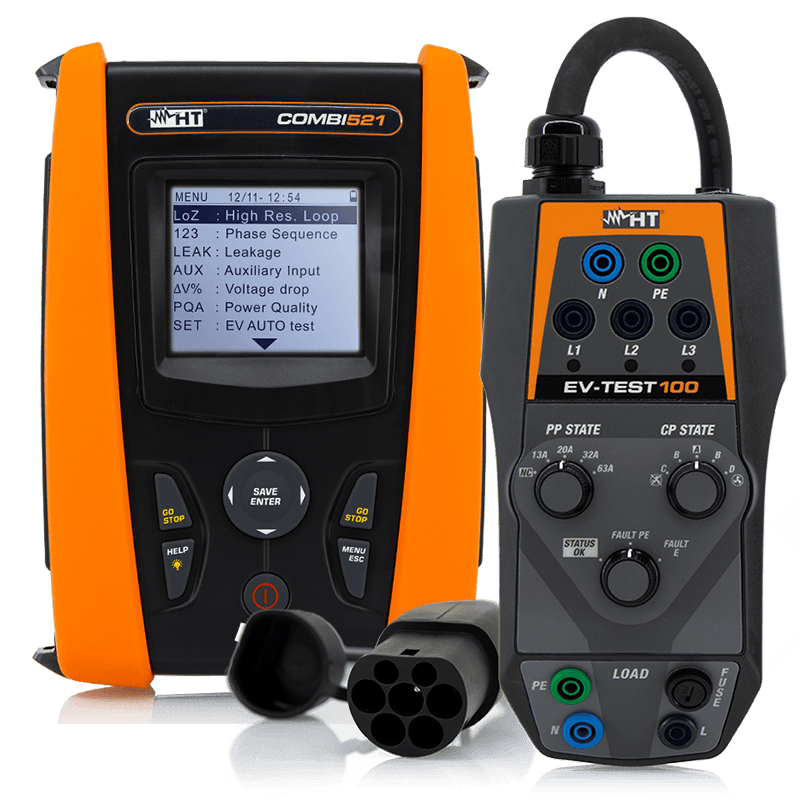

TECHNICAL SPECIFICATIONS OF EV-TEST100
Technical characteristics:
Input voltage: max 415V AC Phase-Phase, 50/60Hz ±5%
Connection to EVSE system: integrated cable with Type 2 plug, length 60cm
Recharging stations: charging modes 2 and 3
PP Simulation: NC,13A, 20A, 32A, 63A
CP Simulation: status A, B, C, D, ventilation/not ventilation
Simulation EVSE fault: Fault PE, Fault E
CP output signal: PWM communication protocol, 12V
Allowed output load: 240V, 50/60Hz, max 10A AC
Protection fuse: Fast type 250V/10A (5x20mm) (0.2x0.8in)
Mechanical characteristics:
Dimensions (L x W x H): 210 x 115 x 60mm (8 x 5 x 2in)
Weight (with integrated cable): 900g (32ounces)
Mechanical protection: IP40
Reference guidelines:
Safety: IEC/EN61010-1
EMC: IEC/EN61326-1
Sector guidelines: IEC/EN61851-1, IEC/EN60364-7-722
Insulation: double insulation
Measurement category: CAT III 300V
Pollution degree: 2
Environmental specifications:
Working temperature: 0°C 40°C (32°F 104°F)
Working humidity: <80%RH
Storage temperature: -10°C 60°C (14°F 140°F)
Storage humidity: <80%RH
Max operating altitude: 2000m (6562ft
STANDARD ACCESSORIES
SP-0500
User manual on CD-ROM and quick guide
Calibration report
BORSA75
C2033X
UNIVERSALKIT COMBI
TOPVIEW2006
