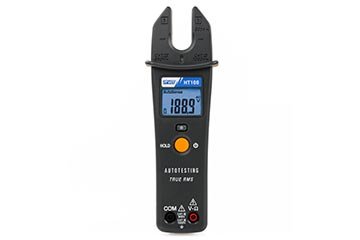

HT HT100 Clamp Meter (AC 200A; True RMS)

DC Voltage (Autorange): 2.2V ÷ 1000.0V/ -0.7V ÷ -1000.0V; ±(0.3%rdg + 2dgt); >6k approx.420k (@1000V); 1000VDC/ACrms

AC TRMS Voltage (Autorange)

3V ÷ 1000.0V; ±(0.9%rdg.+3dgt)(50Hz ÷ 60Hz),±(1.5%rdg.+3dgt) (61Hz ÷ 500Hz); >6k approx.420k (@1000V); 1000VDC/ACrms

AC TRMS Current (Autorange): 1.5A ÷ 200.0A; ±(3.0%rdg + 5dgt); 50 60Hz; 200Arms

Resistance and Continuity test (Autorange) : 0 ÷ 9999; ±(0.9%rdg + 2dgt); ≤ 25; 1000VDC/ACrms

Diode test : 0.4 ÷ 0.8V; (1.0%rdg + 3dgt); 1000VDC/ACrms

Dimensions (L x W x H): 193 x 54 x 31mm

Weight (including battery): 280g

Max conductor size: 16mm

Power Supply : 2x1.5V batteries AAA LR03; about 300 hours

Auto Power Off: about 20 minutes of idleness

Display: 4 LCD (max 9999 counts), sign, decimal point and backlight

Sample rate: 2 times/sec

Conversion mode: TRMS

Insulation: double insulation

Pollution degree: 2

Max height of use: 2000m

Accessories:

Carrying bag HT100

Pair of Leads 4413-2

Batteries and user manual
