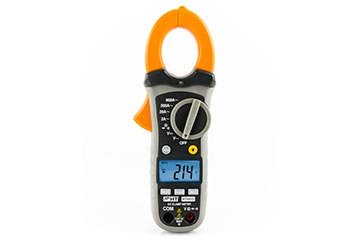

HT HT4010 clamp meter (AC 600A; True RMS)

DC VOLTAGE:

200.0mV; ±(0.8%rdg+2dgt)

2.000V/ 20.00V/ 200.0V; ±(1.5%rdg+2dgt); 600VDC/AC RMS

600V; ±(2.0%rdg+2dgt); 600VDC/AC RMS

AC VOLTAGE:

200.0mV; ±(1.5%rdg+3.5mV)

2.000V/ 20.00V/ 200.0V; ±(1.5%rdg+2dgt); 600VDC/AC RMS

600V; ±(2.0%rdg+2dgt); 600VDC/AC RMS

AC CURRENT:

2.000A; ±(2.5%rdg+10dgt); 600ARMS

20.00A/ 200.0A; ±(2.5%rdg+4dgt); 600ARMS

600.0A; ±(4.0%rdg+8dgt); 600ARMS

RESISTANCE AND CONTINUITY TEST:

200.0Ω; ±(1.0%rdg+4dgt); ≤150Ω; 250VDC/AC RMS

2.000kΩ/ 20.00kΩ/ 200.0kΩ; ±(1.5% rdg+2dgt); ≤150Ω; 250VDC/AC RMS

2.000MΩ; ±(2.5% rdg+3dgt); ≤150Ω; 250VDC/AC RMS

20.00MΩ; ±(3.5% rdg+5dgt); ≤150Ω; 250VDC/AC RMS

DIODE TEST : 0.3mA typical; 1.5VDC

Display: LCD, 3 ½ dgt, 2000 points plus sign and decimal point; Automatic polarity indication; Backlight

Measuring rate: 2 times/second

Conversion: mean value

Low battery indication: "BAT" appears when the battery voltage is low

Max altitude: 2000m

Pollution degree: 2

Insulation: double insulation

Max. diameter conductor: 30mm

Power supply: 1x9V battery NEDA 1604 IEC 6F22

AutoPowerOFF after 15 minutes of idleness

Size: 197(L)x70(W)x40(H) mm

Weight: 180g (included battery)

Accessories:

Bag B80

Pair of Leads KIT4000A

Batteries and user manual
