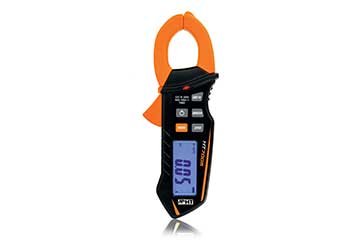

HT HT7005 Clamp meter (DC/AC 400A; True RMS)

DC CURRENT: 40.00A (±(2.5%rdg+10dgt)/ 400.0A (±(2.8%rdg+8dgt) ; 400A DC/ACrms

AC TRMS CURRENT: 40.00A; ±(2.5%rdg+10dgt); ±(2.8%rdg+10dgt); 400A DC/ACrms

400.0A; ±(2.8%rdg+8dgt); ±(2.8%rdg+8dgt) ;400A DC/ACrms

Display: LCD, 3 ¾ digits with maximum reading 4000 counts + decimal point + backlight

Function: Data HOLD; AC voltage detection without contact (NCV): range 200V ÷ 1000V, 50/60Hz

Measuring rate: 3 times per second.

Conversion: TRMS

Altitude max of use: 2000m

Pollution degree: 2

Insulation: double insulation

Max. diameter conductor : 20 mm

Power supply: 2 x 1.5V batteries type AAA LR03; ca 300h (with backlight), ca 750h (without backlight) ; Auto Power OFF: after 15min of idleness

Dimension: 155 x 60 x 25mm

Weight: 140g (battery included)

Accessories:

Batteries and user manual
