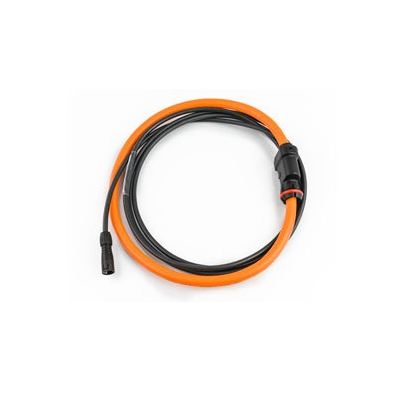

HT HTFLEX33LE FLEXIBLE CLAMP FOR AC CURRENT (3000A ACRMS)

Measurement range: 3000A ACRMS

Output signal (@ 1000ARMS, 50Hz): 85mV AC

Input impedance: 170Ω ~ 10Ω

Output impedance: 100Ω

Accuracy (at 25°C, 50Hz): ± 0.5%rdg (0.1% ÷ 100% of range)

Linearity (from 0.1% to 100% of range): ± 0.5%rdg

Frequency range: 10Hz ~ 20kHz

Phase error: < ± 1° (45 ~ 65Hz)

Position sensitivity: ± 2% rdg

Noise: 1mV ACRMS

Measurement category CAT III 1000V, CAT IV 600V

Insulation: double insulation

Pollution degree: 2 according to IEC/EN610101-1

Flexible clamp length (double insulation): 600mm

Maximum conductor diameter: 190mm

Instrument connection cable length:: 2m (double insulation)

Output connector: BINDER 9992130005 620 series

Operating temperature: -20°C ~ 80°C

Storage temperature: -40°C ~ 90°C

Temperature coefficient: ± 0.005 % rdg /°C

Operating humidity 15% ~ 85%HR without condense

Encapsulation: IP65

Safety:

IEC/EN61010-1:2001,

IEC/EN61010-031:2002

IEC/EN61010-2-032 :2002
