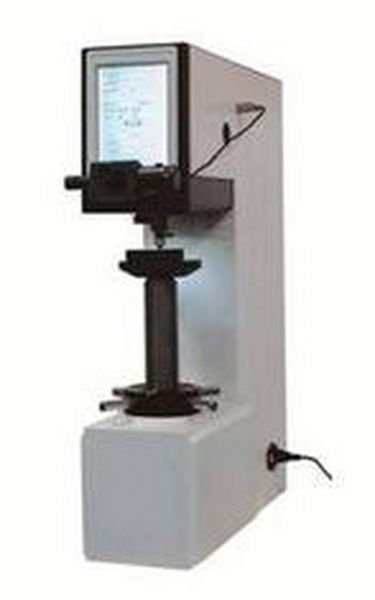

Huatec HB-3000TSA Closed - Loop Auto Turret Touch Screen Brinell Hardness Testing Machine Bench Type

- Operation Type: Touch Screen
- Brinell Scale: HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/250, HBW10/500 , HBW10/1000, HBW10/1500, HBW10/3000
- Test Force Kgf(N): 62.5kgf(612.9N),125kgf(1226N),187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
- Load accuracy: <±0.1%
- Indentation measurement resolution: 1um
- Ball diameter Diameter error: < ±1um
- Uncertainty test cycle time: < 0.5S
- Min measuring unit: 0.625µm
- Dwell time: 5~60s
- Hardness measuring range: 8~650HBW
- Objective and indenter exchange mode: Auto Motorized Turret
- Data output: Touch Screen, saved in USB flash disk
- Executive Standard: Calibration GBT 231.3-2002 metal Brinell hardness test - Part 3 standard hardness blocks JJG 147-2005 standard Brinell hardness block
- Max Height of Specimen: 230mm
- Distance of Indenter to outer wall: 160mm
- Power supply: AC220+5%,50~60Hz
- Overall Dimension: 550*210*750mm
- Net weight: About 90kg

Standard accessories:
- Measuring microscope 20X: 1 pc
- Hard alloy indenter (diameter2.5,5,10mm): 1 EACH
- Hardness block: 3 pcs
- Large, medium, V-type testing anvil: 1 EACH
- USB flash disk: 1 pc
- Manufacturer certificate, Instruction: 1 EACH
