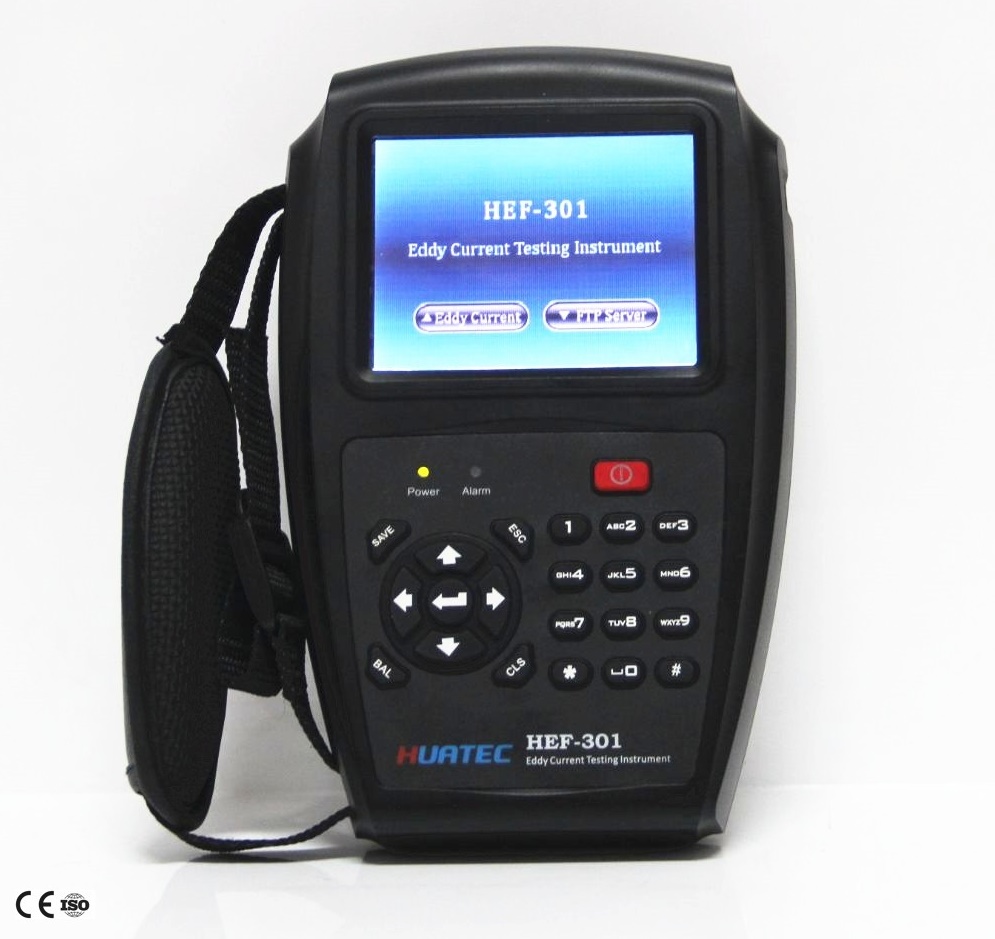

HEF-301 Huatec Handheld Eddy Current Testing Equipment , Precise Eddy Current Flaw Detector

Specifications

- Frequency range: 64 Hz~5 MHz (adjustable)
- Gain range: 0~90 dB, adjustable in step of 0.5 dB
- Phase rotation: 0~360 , adjustable in step of 1
- Fast digital/analogue electronic balance
- Impedance plan display window
- Delay disappear of signal track
- Menu type man-machine dialog
- Communication by USB port (connect with USB and other removable storage devices) or network port (connect with PC)
- Digital filter
- Optional in absolute probe, differential probe and self- comparing probe
- The alarm area is adjustable
- Boundary dimension: 183x120x44 (mm)
- Weight: 600g
- Gross weight:4kgs
