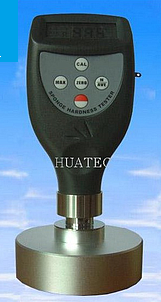

Huatec HT-6520 Foam Hardness Tester Shore Durometer

Digital Foam Hardness Tester HT-6520

Durometer HT-6520 is an exclusive design for testing soft cellular materials. The large diameter presser foot and cylindrical indentor configuration allow measurement by direct application to the test specimen.

SPECIFICATIONS

Display:4 digits, 10 mm LCD

Range:0~100

Resolution: 0.1

Presser foot: 80mm diameter

Indenter: Extension 2.54mm

25.2mm Cylinder

Spring force: 455gf

Measurement deviation: ≤ ±1

Power supply: 4x1.5v AA (UM-3) battery

Operating condition: Temp. 0~50℃

Humidity <80%

Size:162x65x28mm (6.4x2.6x1.1inch)

Weight:about 490g(not including batteries)

PC interface: RS232C interface

Power off : 2 modes Manual off at any time by depressing the power key till OFF shows on the display or Auto power off after 2 minutes from last key operation .

Accessories:

Carrying case 1 pc.

Operation manual 1 pc.
