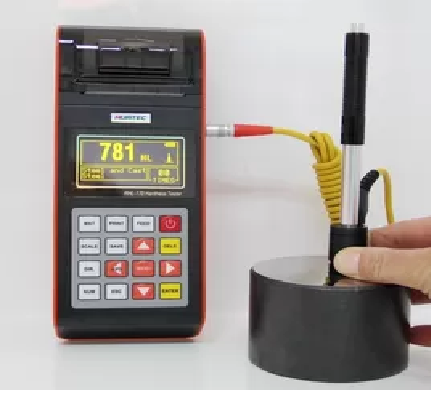

Measuring range:HLD (170-960),HRC (17.9-69.5),HB (19-683),HV (80-1042),HS (30.6-102.6),HRA(59.1-88),HRB (13.5-101.7)
Measuring direction:360°
Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
Display:dot matrix LCD,128×64 dots
Data memory: 600 groups max.(relative to impact times 32~1)
Printing paper: width is (57.5±0.5)mm, diameter is 30mm
Battery pack: 6V NI-MH
Battery charger: 9V/500mA.
Continuous working period:about 200hours(With backlight off, no printing)
Communication interface:USB2.0
Dimensions: 210 x 85 x 45mm (host).
Weight: about 0.6kg (host).
Standard Configuration:
- Main Unit RHL-170:1
- D type impact device:1 (With cable)
- Standard test block:1
- Cleaning brush (I):1
- Small support ring:1
- Battery Charger:1 (9V 500mA)
- Paper for printing:1
- Manual:1
- Data Pro software:1
- Communication cable:1
- Instrument case:1
Optional Configuration:
- Cleaning brush (II):1 (For use with G type impact device)
- Other type of impact devices and support rings
