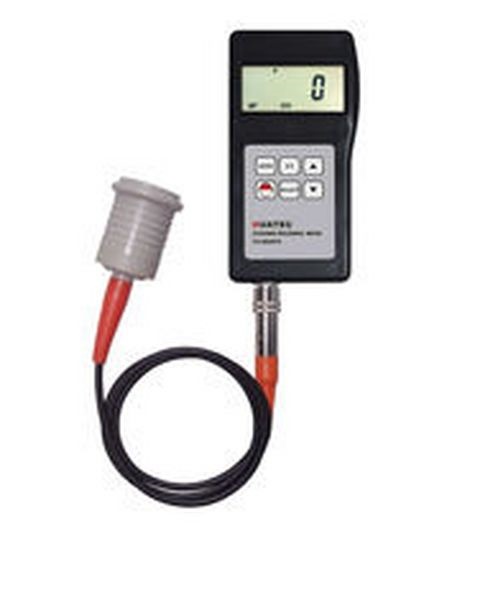

Description:
- With separate probe(s)
- Function: TG-8829F (ferrous substrate)
- Operating principle: magnetic induction
- Measuring range:0-12000um/
- Resolution; 0.1/1
- Accuracy: ±1-3%n or ±2.5um
- Min. measuring area: 30mm
- Min. sample thickness: 0.3mm
- Battery indicator: low battery indicator
- Metric/ imperial: convertible
- Power supply: 4x1.5V AAA(UM-4)battery
- Auto power off
- Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
- Dimensions: 126x65x27mm
- weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um
Application:
1. TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
Standard Delivery of TG8829F:
- Main unit(1250um) 1
- F type probe 1
- F calibration base set 1
- Calibration foil set 1set (4 foils)
- Carrying case 1
- Instruction manual 1
Optional Accessories
- Cable and software for RS-232C
- Customized testing range
