HUATEC XHR-150 Testing Force, Motorized Testing Method Plastic Rockwell Hardness (HR, 150kg)
Technical Specifications
Initial Testing Force | 98.07N(10KG) |
All Testing Force | 588.4N(60kg),980.7N(100kg),1471N(150kg) |
Testing Field | 70-94HRE,100-120HRL,85-110HRM,114-125HRR |
Indication of Hardness Value | Dial |
Duration Time | 2-60S |
Max Height of Specimen | 170mm |
Max Width of Specimen | 165mm |
Dimensions | 520x215x700mm |
Net Weight | 78kg |
Power Supply | Ac220±5%,50-60Hz |
Standard Accessories | Diameter 3.175,6.35,12.7mm Ball indenter ,Large Testing Table, Medium Testing Table and V-shaped Table,4pcs Hardness Blocks,Lever,Power Cable |
Detailed Product Description

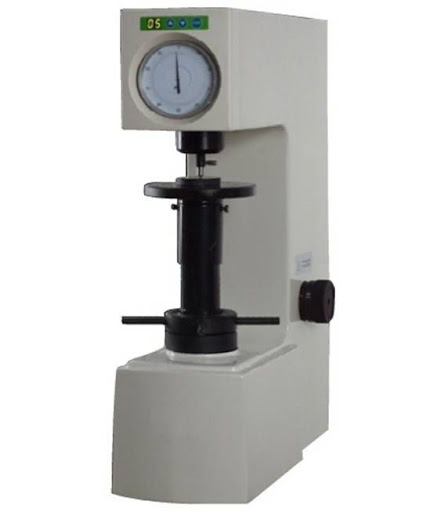

Motorized Testing Method Plastic Rockwell Hardness Tester XHR-150
XHR-150 Plastics Rockwell Hardness Tester adopts motorized testing method, Its testing force
can be loaded, kept and unloaded automatically. Avoid man-made error and easy to use. It is therefore, welcomed by many users.
Application:Hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins, fricative materials, etc.
Technical Specifications
|
Initial Testing Force |
98.07N(10KG) |
|
All Testing Force |
588.4N(60kg),980.7N(100kg),1471N(150kg) |
|
Testing Field |
70-94HRE,100-120HRL,85-110HRM,114-125HRR |
|
Indication of Hardness Value |
Dial |
|
Duration Time |
2-60S |
|
Max Height of Specimen |
170mm |
|
Max Width of Specimen |
165mm |
|
Dimensions |
520x215x700mm |
|
Net Weight |
78kg |
|
Power Supply |
Ac220±5%,50-60Hz |
|
Standard Accessories |
Diameter 3.175,6.35,12.7mm Ball indenter ,Large Testing Table, Medium Testing Table and V-shaped Table,4pcs Hardness Blocks,Lever,Power Cable |
