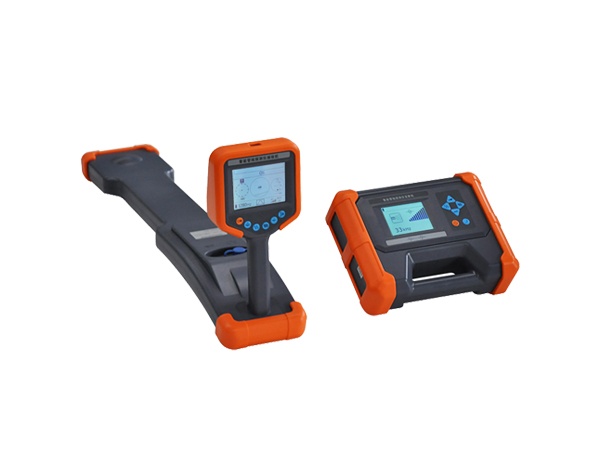

HV HIPOT GD-2134E Cable Identifier

Transmitter

Output modes: Direct connection output, radiation induction, clamp coupling output(optional), fault locating HV booster(optional).

Output frequency: 640Hz (compound frequency), 1280Hz (compound frequency), 10kHz, 33kHz, 82kHz, 197kHz.

Output power: Max.10W, 10 gears adjustable, automatic impedance matching.

Direct connection output voltage: Maximum 150Vpp.

Protection: Overload and short circuit protection.

Man-machine interface: 320 x240 dot matrix LCD display.

Built-in battery: 4 section 18650 lithium ion battery, nominal 7.4V, 6.8Ah.

Receiver

Input mode: Built-in receiving coil, flexible clamp-on CTs(optional), Stethoscope(optional), A type fault detection device(optional).

Receiving frequency

Active detection frequency for Pipes: 640Hz, 1280Hz, 10kHz, 33kHz, 82kHz, 197kHz.

Power frequency passive detection frequency: 50Hz/60Hz and 250Hz/300Hz (user configurable).

RF passive detection frequency: The center frequency is 10kHz, 33kHz, 82kHz respectively.

Pipe detection mode: Wide peak method, narrow peak method, sound Valley method.

Cable identification mode: Flexible clamp-on CTs(optional) automatic identification and current measurement, stethoscope(optional) identification.

Display: 320*240 LCD display, shows signal amplitude, left/right direction, correct/false indication, history curve of signal strength, depth, current and result.

Battery: Built-in battery, 2 section 18650 lithium ion battery, rated 7.4V, 3.4Ah.

Others

Dimension: Transmitter 280*220*90mm. Receiver 680*277*120mm.·

Weight: Transmitter 2.3kg. Receiver 2.0kg.

Charger: AC100-240V input, 50/60Hz, output DC 8.4V,2A/3A.

Working condition: Temperature -10-40℃, humidity 5-90%RH, altitude<4500m
