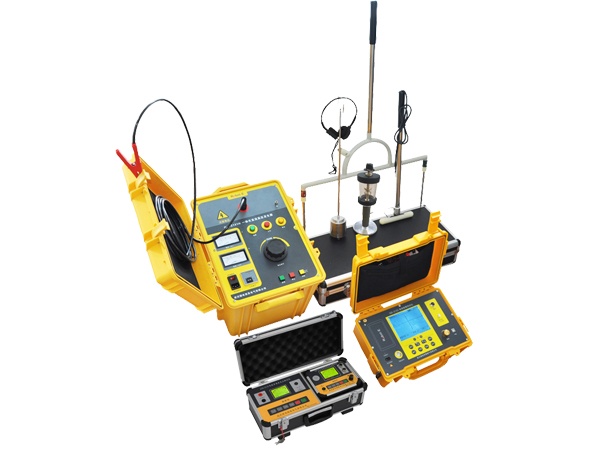

GD-2131L Impulse Generator
Input power supply: AC 220V,50Hz
Output voltage: DC 0-16kV (adjustable)
Rated power: 1kVA
Max.energy: 1024J, 8uF
DC flashover voltage: 16kV
DC flashover current: 63mA
Max.impulse current: 500mA
Discharging method: DC HV, one time, cycle
Cycle discharging time: 3-6 seconds
Environmental temperature: 0-40℃
Humidity:<75% RH
Altitude:<1000m
Insulation level: A
Dimension: 430*540*410mm
Weight: about 31kg.
GD-2132 Cable Fault Locator
Tracing and locating distance: local cable 3km, other cable up to 20km
Fault impedance resistance:0-5MΩ
Locating accuracy: ≤±10cm.
Detection cable depth: <3m.
GD-2133 Cable Fault Detector
Max.testing distance: 15km(Open wire up to 100km) according to customer’s requirements.
Blind detection: 1m
Resolution: 1m
Power consumption: 5VA
Environmental temperature: 0-40℃(limit temperature:-10℃-50℃)
Relative humidity: 40℃(20~90)%RH
Atmospheric pressure: 86-106Kpa
Size: 275*220*160mm
Weight: 1.8kg
