HV HIPOT GD-2138 Cable Fault Locating System (32km)

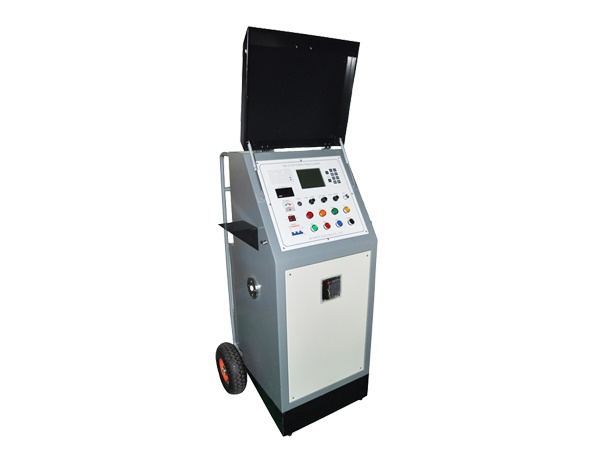

GD-2138 Main Unit

Input power: AC220V, built-in rechargeable battery

The farthest test distance: 32km

Detection blind zone: 1m

Reading resolution: 1m

Impact voltage: 0-15kV

Ambient temperature: 0°C~+40°C

Ambient humidity: <80% RH

Size: 750*570*1200mm

Weight: 128kg.

GD-2132 Receiver

Maximum tracking positioning distance: 20km, or 3km (Φ< 0.5)

Fault insulation resistance value of quasi-determined point: 0~50MΩ

Positioning test accuracy: ≤ ± 10cm

Detection cable depth: ≤3m

Datasheet

The System Includes:

• GD-2138 Mainframe

• GD-2132R Receiver.

• RF Inductive Tracking Rod.

• Potential Difference Locating Rack with 2 pins.

• AF Stethoscope and Headphones (for Listening mode).

• Grounding Pin.
