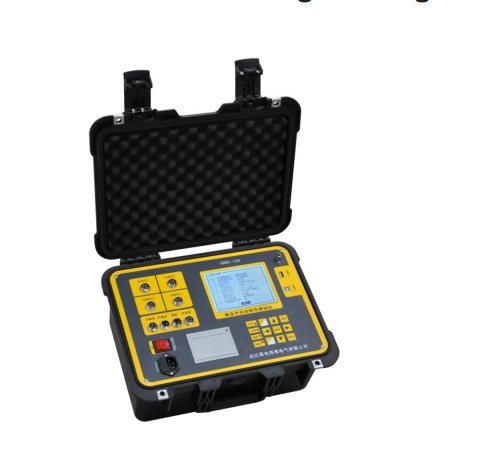

HV HIPOT GDKC-12A Circuit Breaker Analyzer
Features
- Time: the open/close time, in phase synchronization, phase-to-phase synchronization of 12contacts.
- Reclose: close-open, open-close, open-close-open time for each contact.
- Bounce: Close bounce time, times, process and waveform of each contacts.
- Velocity: Velocity at contact touch, maximum speed, time-range characteristic curve.
- Travel: Total travel, open travel, over travel, travel overshoot, bounce amplitude.
- Current: open/close current, current waveform diagram of the open/close coil.
- Operation voltage: built-in DC30~250V/20A digital, adjustablepower source of breaker, automaticallycomplete LV action test of circuit breaker and measure action voltage value of circuit breaker.
- It is suitable to test the mechanism parameters of all types of SF6 circuit breaker, GIS combination electric equipment, vacuum circuit breaker,oil circuit breaker.
- Strong anti-interfereability. It also can easily test and accurately measure even interbus is live in 500kV substation.
- With universal velocity sensor(optional), linear velocity sensor, rotary sensor, easy to install.
- Only one time action to obtain all data and corresponding waveform of breaker mechanism test.
- Storage test data, built-in real-time clock, which is convenient to save test date and time.
- LCD screen display, with contrast adjustment and power-off memory.
- Built-in printer, to get all data and diagram at any time quickly.
Specifications
1.1 Using Environments
Input Power: 220V± 10% 50Hz± 10% Air Pressure: 86~106kpa
Temperature: -10~40 degree
Humidity: 80%RH
1.2 Safety Performance
Insulation Resistance>2MΩ
Dielectric Strength: Chassis can withstand voltage 1.5kv and power frequency for 1 minute without flash-over and arcing.
1.3 The Basic Parameters
A. Time: Range 25000.0ms resolution 0.01ms
Error 250ms 0.01ms ± 1digit
2500ms 0.1ms ± 1digit
25000ms 1ms ± 1digit
Same period
B. Velocity: Range 20.00m / s resolution 0.01m / s
Error 0-2m / s ± 0.1m / s ± 1digit
Above 2ms ± 0.2m / s ± 1 digit
C.Range:Range
Resolution
Error
Vacuum breaker
50.0mm
0.1mm
0.1±1digit
SF6 circuit breaker
300.0mm
1mm
Oil circuit breaker
600.0mm
D. Current: Range 20.00A resolution 0.01A
E. Output power: DC0 ~ 300V digital adjustable / 20A (instantaneous work), resolution 1V.
F. Dimensions: 360mm (L) × 280mm (W) × 300mm (H)
G. Weight: 10kg
