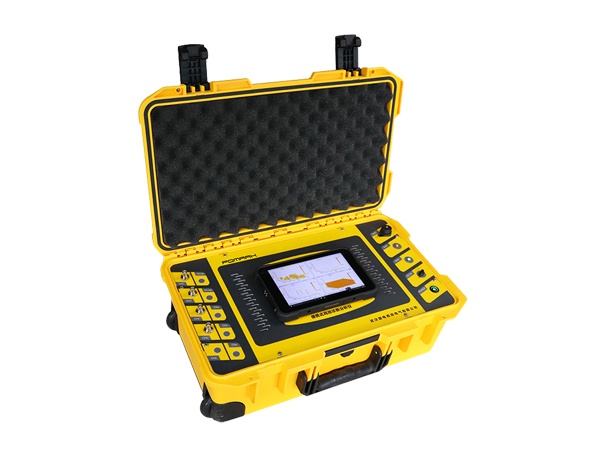

PD signal acquisition host
CPU Working frequency: 1.2GHz
Operating system: Linx embedded operating system
Wired network port: LAN network port
Wireless network port: Built-in WiFi
System running memory: 1G
System storage memory: 512M
Data acquisition frequency: 250MHz
Ultrasonic detection channel
Measurement range: 0-60mV
Frequency detection range: 20~200kHz
UHF detection channel
Detection frequency: 300~1800MHz
Measurement range: -80~10dBm
Error: ±1dBm
Resolution: 1dBm
HFCT detection channel
Frequency range: 0.5~100MHz
Error: ±1dB
Dynamic Range: 60dB
Measurement range: 0-100mV
Accuracy: 1dB
TEV detection channel
Frequency range: 3~100MHz
Measurement range: 0-60dB/mV
Sensitivity: 0.01mV
Error: ±1dB/mV
Resolution: 1dBm/mV
Battery
Built-in battery: Lithium battery, 12V, 4000mAh
Use time: about 8 hours
Charging time: About 2 hours
Battery protection: Over-voltage and over-current protection
Battery charging
Rated voltage: 12.6V
Charging output current: 2A
Operating temperature: -20℃-60℃
Operating humidity: <80%
Hand-held display terminal (industrial grade) or ThinkPad notebook
CPU: Intel Quad Core Atom Z3735F
GPU: Intel HD Graphic (Gen7)
Flash: 32GB
RAM: 2GB
Operating system: Windows10
Display: 8.1 inch 1280×800 IPS screen
Network interface: Wifi and Bluetooth
Battery: 3.7V 8500mAH polymer lithium ion battery
Size
PD acquisition host size: 240mm*165mm*55mm
PD acquisition host weight: 0.65kg
Display tablet terminal size: 395mm*295mm*105mm
Display tablet terminal weight: 0.85kg
Overall box size: 570mm*360mm*240mm
Working environment
Working temperature: -20℃~50℃
Environment humidity: 0~90%RH
IP level: 54
